TRAILER JACKS

Click on the PART NUMBER to add parts to the “Your Saved Parts” to request a quote.

 Disclaimer: Images may not always be accurate to the part #

 If you do not find what you are looking for, contact us.

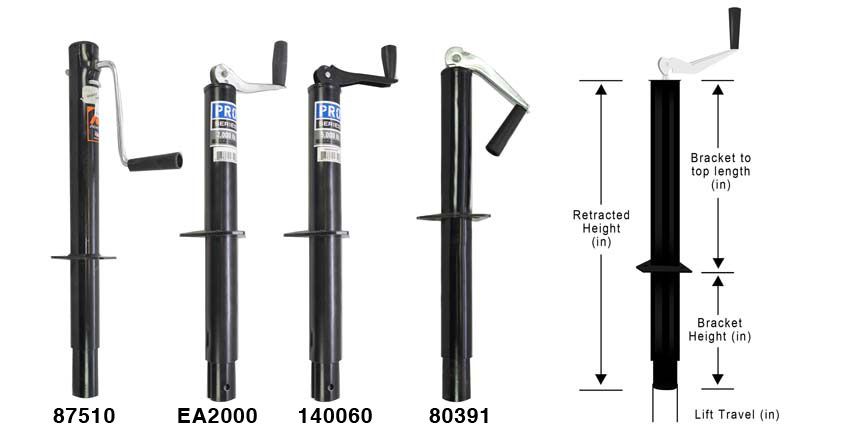

A Frame Jacks

A-Frame Jacks



PART NUMBERDESCRIPTIONCAPACITYLIFTBRACKET HEIGHTRETRACTED HEIGHTTYPE OF WIND
87510A-Frame Jack2000lbs14”8 ¾”22”Side
EA2000A-Frame Jack2000lbs14”8”22 ½”Top
140060A-Frame Jack5000lbs14”10.8”26”Top
80391A-Frame Jack5000lbs14”11 ¼”22”Top

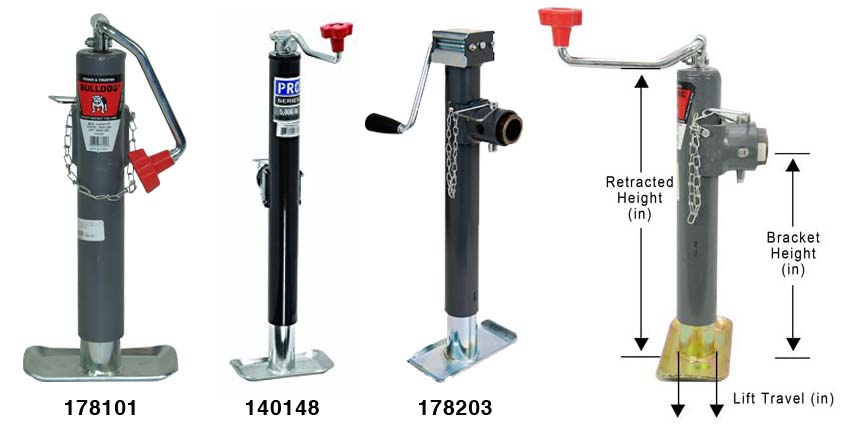

Pipe Mount Swivel Jack

Pipe Mount Swivel Jacks



PART NUMBERDESCRIPTIONCAPACITYLIFTBRACKET HEIGHTRETRACTED HEIGHTTYPE OF WIND
178101Pipe-Mount Swivel Jack5000lbs10”11 ¼”18 ½”Top
140148Pipe-Mount Swivel Jack5000lbs15”14 ¾”25”Top
178203Pipe-Mount Swivel Jack5000lbs15”15”21 ¾”Side

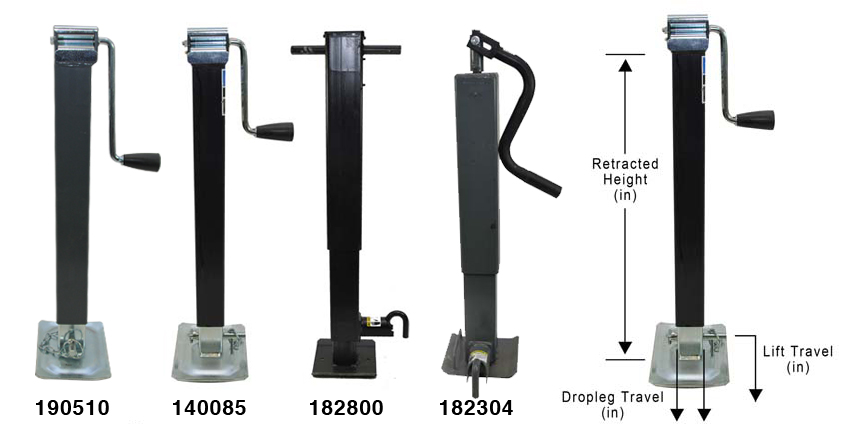

Drop Leg jack

Dropleg Jacks



PART NUMBERDESCRIPTIONSTATIC LOADLIFT CAPACITYLIFTDROPLEG TRAVELRETRACTED HEIGHTTYPE OF WIND
190510Dropleg Jack8000lbs7000lbs15”13 ½”22.95”Side
140085Dropleg Jack 8000lbs5000lbs 15″ 13 ½” 25 ½”Side
182800Spring-loaded Dropleg Jack12,000lbs10,000lbs12 ½”13 ½”27”Side
182304Dropleg Jack12,000lbs10,000lbs12 ½”13 ½”22 ½”Top

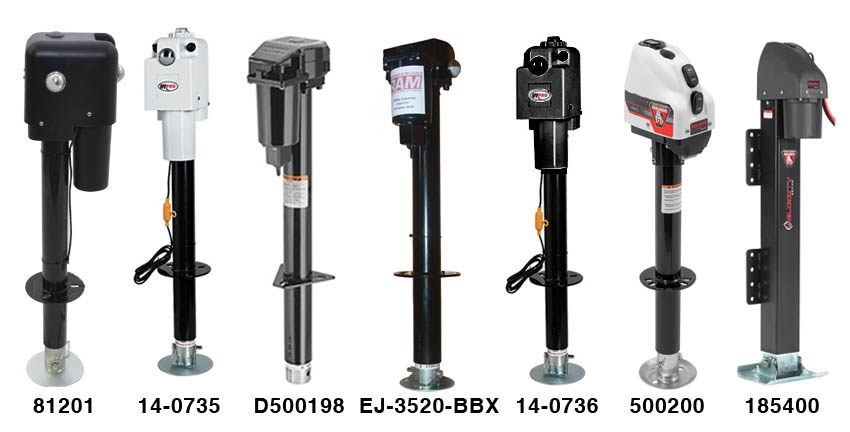

Electric Jack

Electric Jacks



PART NUMBER

DESCRIPTION

81201

AcmeElecricJack, 2 ¼”OuterPipe Dia., 18” Travel, UV Resistant Cover, Water-Resistant, 3500lb Cap.
14-0735

RV-Pro Electric Jack, 2 ¼”OuterPipe Dia., 18” Travel, Built-In Level, 3500lb Cap.

D500198

Power Drive Electric Jack, 2 ¼”OuterPipe Dia., 18” Travel, Incl. Handle For Manual Override, 2500lb Cap.

EJ-3520-BBX

Ram Electric Jack, 2 ¼” Outer Pipe Dia., 18” Travel, 3,500lb Cap.

14-0736

RV Pro Electric Jack, 2 ¼” Outer Pipe Dia., 18” Travel, 3,500lb Cap., Black
500200

Bulldog HD Electric Jack, 17” Travel, 4,000lb Cap, LED Light

185400

Bulldog HD High Speed Electric Jack, 24” Travel, Includes Wired Remote, 12,000lb Cap.

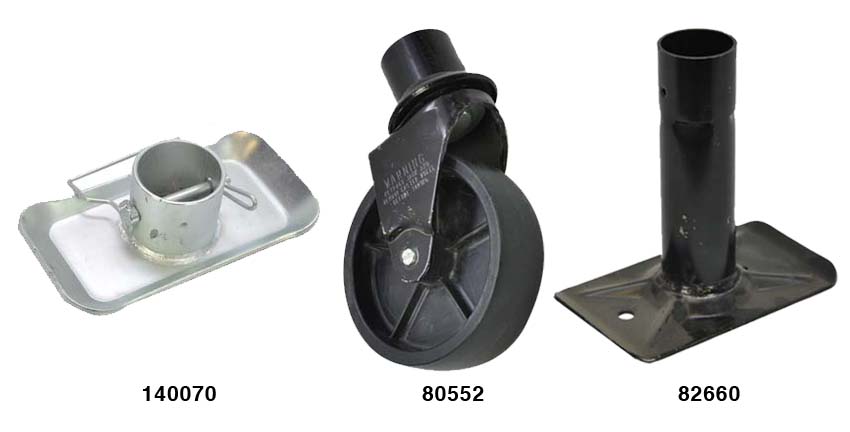

Jack Feet

Jack Feet



PART NUMBERDESCRIPTION
140070Jack Foot Plate And Snapper Pin For 2” To 2 ¼” Tube Jack (2000lb – 5000lb) Gloss Black Finish
805522” X 6” Poly Caster Wheel For 2,000lb And 5,000lb Jacks W/ 2” Tube (Caster Rated At 1,000lb)
82660Jack Foot, 6 ¾” Tall for 2000lb & 5000lb 2” Tube Jacks
