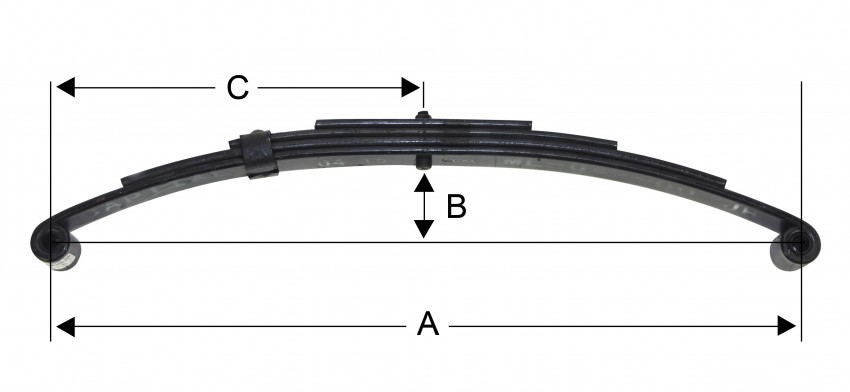

Double-Eye Springs



suspension parts

1 ¾” Double-Eye Springs

We recommend replacing springs in pairs for the following reasons. The center bolt that binds the leaves together on your current spring may be in a different position, fore or aft, of the replacement spring, thus causing axle misalignment.
Also, replacing only one spring may cause your trailer to not be level; this is due to spring fatigue, causing the spring to flatten. Spring material becomes more brittle as time passes. In other words, if one spring has failed, the other may not be far behind.



PART NUMBER

DESCRIPTIONLEAVESCAPACITYLENGTH (CENTER OF EYE TO CENTER OF EYE)

EYE DIAMETER

TP121

Double-Eye Spring2500lbs26”9/16″
TP168Double-Eye Spring3700lbs20 5/16”

9/16″

TP123Double-Eye Spring4750lbs26″9/16″
TP122Double-Eye Spring3800lbs26”9/16″
TP169Double-Eye Spring31,000lbs20 ¼”9/16″
TP113Double-Eye Spring31,000lbs23 ½”9/16″
TP124Double-Eye Spring41,000lbs26”9/16″
TP219Double-Eye Spring31,250lbs25 ¼”9/16″
125-3Double-Eye Spring31,250lbs23.13”9/16″
TP114Double-Eye Spring41,500lbs23 ½”9/16″
TP050Double-Eye Spring31,500lbs26”9/16″
TP216Double-Eye Spring31,750lbs23 1/8”9/16″
TP212Double-Eye Spring41,830lbs25 ½”9/16″
TP051Double-Eye Spring42,000lbs26”9/16″
TP220Double-Eye Spring32,000lbs25 ½”9/16″
TP218Double-Eye Spring42,500lbs25 ¼”9/16″
TP079Double-Eye Spring42,500lbs23 1/8”9/16″
TP111Double-Eye Spring53,000lbs25 ¼”9/16″
AWS-6Double-Eye Spring63,000lbs26”9/16″
TP223Double-Eye Spring63,500lbs25 ¼”9/16″



Common Corresponding Parts



These are the nylon bushings, shackle bolts, and locking nuts used with the above springs.



PART NUMBER

DESCRIPTION

536-1

Nylon Bushing, 9/16” I.D X 11/16” O.D X 1 ¾” Length

RT3152

Shackle Bolt, 9/16” Dia. X 3” Length
RT3166

Locking Nut for 9/16” Shackle Bolt

Slipper Springs

suspension parts

1 ¾” Slipper Springs



We recommend replacing springs in pairs for the following reasons. The center bolt that binds the leaves together on your current spring may be in a different position, fore or aft, of the replacement spring, thus causing axle misalignment. Also, replacing only one spring may cause your trailer to not be level; this is due to spring fatigue, causing the spring to flatten. Spring material becomes more brittle as time passes. In other words, if one spring has failed, the other may not be far behind.
PART NUMBERDESCRIPTIONLEAVESCAPACITYLENGTH (CENTER OF EYE TO END OF SLIPPER)EYE DIAMETERBUSHING NUMBER
TP203Slipper Spring3900lbs25”9/16”536-1
TP179Slipper Spring41,000lbs24.62”9/16”536-1
TP204Slipper Spring41,200lbs25”9/16”536-1
TP205Slipper Spring31,400lbs25”9/16”536-1
TP047Slipper Spring31,650lbs24 ½”9/16”536-2
TP208Slipper Spring42,300lbs25″9/16”536-2



Replacement Bushing



PART NUMBERDESCRIPTIONINSIDE DIAMETEROUTSIDE DIAMETERCAPACITY
536-1Spring Bushing, Nylon9/16″11/16″1 ¾”
suspension parts

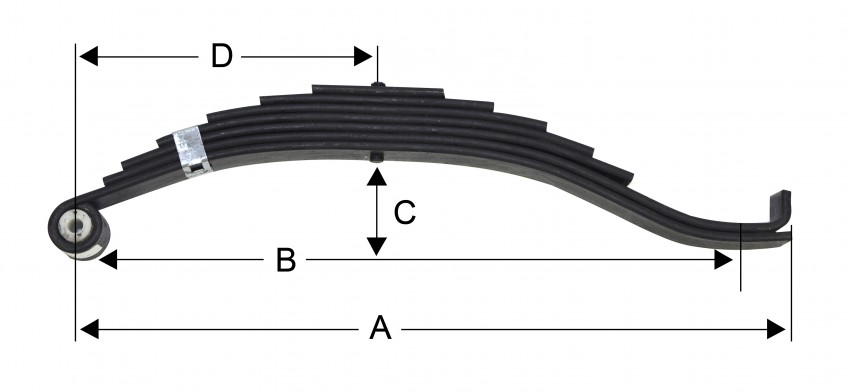

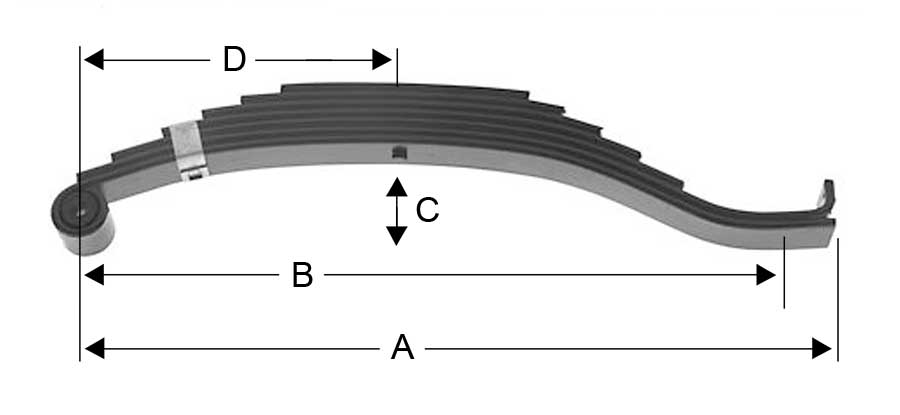

2” Slipper Springs



PART NUMBERDESCRIPTIONLEAVESCAPACITYABCDEYE DIAMETERBUSHING NUMBER
TP301Slipper Spring21,500lbs26 1/8”24 7/8″3”11 3/16”5/8”RB1
TP230Slipper Spring42,000lbs26 1/8”24 7/8″3”11 3/16”9/16”PE-229
TP315Slipper Spring53,500lbs26 1/8”24 7/8″3”11 3/16”9/16”RB2
TP232Slipper Spring53,500lbs26 1/8”24 7/8″3”11 3/16”9/16”PE-229
TP299Slipper Spring53,500lbs26 1/8”24 7/8″3”11 3/16”5/8”RB1
TP051ASlipper Spring74,000lbs26 1/8”24 7/8″3”11 3/16”5/8”RB1
DX140-3T3Slipper Spring74,000lbs26 1/8”24 7/8″3”11 3/16”9/16”536-1




PART NUMBERDESCRIPTIONINSIDE DIAMETEROUTSIDE DIAMETERLENGTH
RB1Spring Bushing, Steel w/ Rubber Sleeve5/8″1.28″2”
RB2Spring Bushing, Steel w/ Rubber Sleeve9/16″1.28″2”
PE-229Spring Bushing, Nylon9/16″11/16″2”
536-1Spring Bushing, Nylon9/16″11/16″1 3/4”



2 ½” Slipper Springs



PART NUMBERDESCRIPTIONLEAVESCAPACITYABCDEYE DIAMETERBUSHING NUMBER
72-80Slipper Spring55,000lbs30”26 7/8″4”13 1/2”3/4”Rubber
093161Slipper Spring55,000lbs32 1/2”29″4”14”3/4”Rubber
72-77Slipper Spring55,000lbs30”26 7/8″4”13 1/2”7/8”Bronze
72-71Slipper Spring55,000lbs30”26 7/8″4”13 1/2”3/4”Bronze



suspension parts

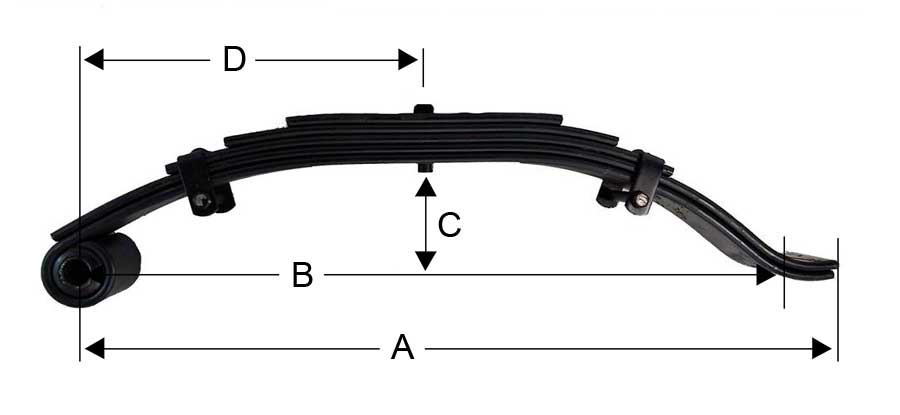

3” Slipper Springs



PART NUMBERDESCRIPTIONLEAVESCAPACITYABCDEYE DIAMETERBUSHING NUMBER
72-43-1Slipper Spring55,000lbs18.10”26 3/4″4”14.57”1”Rubber
72-44-1Slipper Spring66,000lbs18.10”26 3/4″”4”14.57”1”Rubber
72-45-1Slipper Spring77,500lbs18.10”26 3/4″4”14.57”1”Rubber



suspension parts

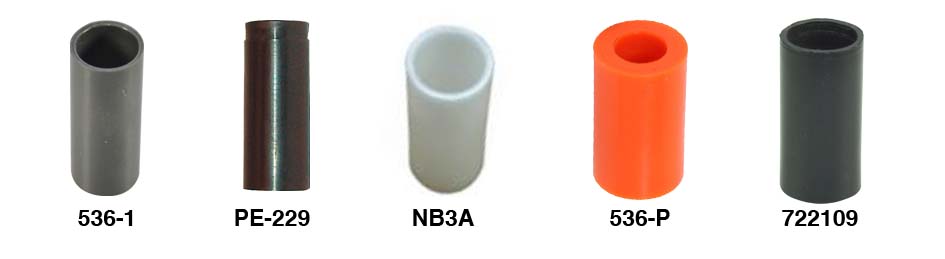

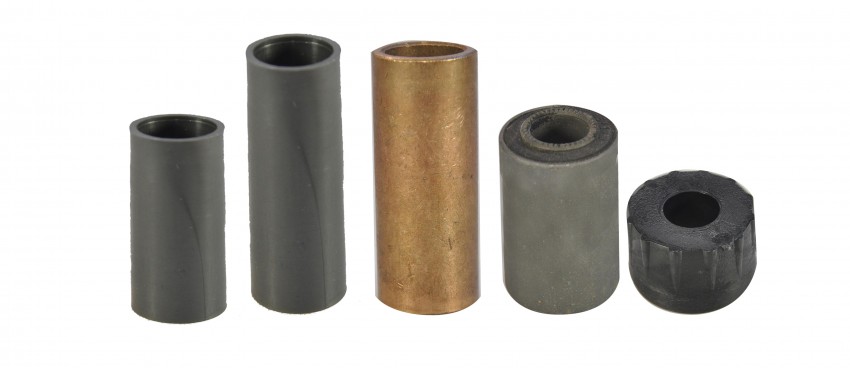

Nylon Bushings



PART NUMBERDESCRIPTIONINSIDE DIAMETEROUTSIDE DIAMETEROVERALL LENGTH
536-2Spring Eye Bushing½”11/16”1 ¾”
536-1Spring Eye Bushing9/16”11/16”1 ¾”
PE-229Spring Eye Bushing9/16”11/16”2”
NB3ASpring Eye Bushing9/16”¾”1 ¾”
PE-225Spring Eye Bushing9/16”7/8”1 ¾”
14-54Spring Eye Bushing9/16”1 5/16”2”
536-PSpring Eye Bushing, Need 2 Per Side9/16”1”1 9/32”
N184132Spring Eye Bushing, Need 2 Per Spring9/16”1 3/8”1 1/32”
536-NSpring Eye Bushing5/8”1 1/32” 1 9/32″
722109Spring Eye Bushing¾” 7/8″1 ¾”
722109ASpring Eye Bushing¾”0.91”1 ¾”
721590Spring Eye Bushing7/8”1 1/16”2 15/16”
suspension parts

Rubber & Steel, Bronze Bushings



PART NUMBERDESCRIPTIONINSIDE DIAMETEROUTSIDE DIAMETEROVERALL LENGTH
RB2Rubberized Steel-Sleeved9/16”1.28”2”
RB1Rubberized Steel-Sleeved5/8”1.28”2”
14-73Rubber with Steel Inside Sleeve, Fits Dexter 9k5/8”1 3/8”2 3/16”
091413Rubber with Steel Inside Sleeve, Fits Hayes 10k¾”1 ¾”2 ¾”
14-112Rubber with Steel Inside Sleeve, Fits Dexter 10k GD¾”2”2 5/8”
14-67Bronze, Fits Dexter 10k GD¾”1”2 ½”
14-111Bronze, Fits Dexter 10k GD (3″ Wide Springs)7/8”1 1/8”2 ½”
8307Rubber with Steel Inside Sleeve, Fits Hayes 10k1”2 1/8”4”
14-69Rubber with Steel Inside Sleeve, Fits Dexter 10k – 15k1”2”3”
14-51Bronze, Fits Dexter 10k – 15k Old Style1”1 ¼”3”
536-14-70Rubber with Steel Inside Sleeve1 1/8”2 1/8” 3 ¾”
suspension parts

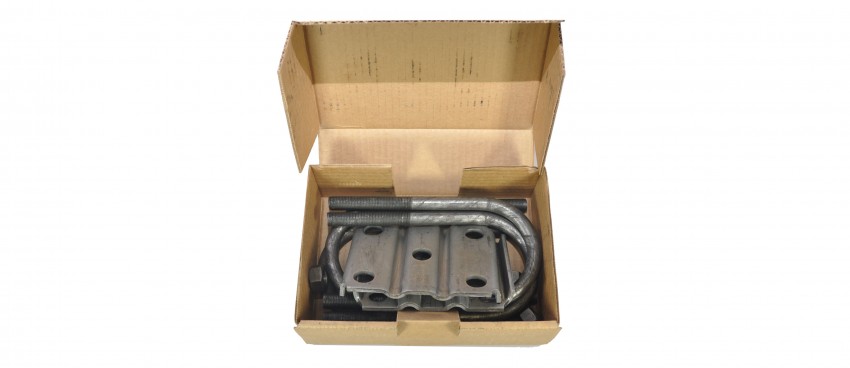

U-Bolt Kits



PART NUMBERDESCRIPTION
APUBR-10U-Bolt Kit For 1 ¾” Round Axle, Incl. (4) 1 ¾” Round U-Bolts (3/8” Dia., 4 ¼” Length), (8) 3/8” Hex Nuts, (2) U-Bolt Plates, For 2000lb Axles
UBR-251U-Bolt Kit For 2 3/8” Round Axle , Incl. (4) 2 3/8” Round U-Bolts (½” Dia., 5 1/5” Length), (8) ½” Hex Nuts, (8) Lock washers, (2) U-Bolt Plates, For
APUBR-9U-Bolt Kit For 3” Round Axle, Incl. (4) 3” Round U-Bolts (9/16” Dia., 7 ¼” Length), (8) 9/16” Hex Nuts, (8) 9/16” Lock washers, (2) U-Bolt Plates, For
suspension parts

Single U-Bolts



PART NUMBERDESCRIPTION
1756431 ¾” Round U-Bolt (3/8” Dia., 4 ¼” Length), For 2000lb Axles, Incl. Nuts
1756682 ½” Round U-Bolt (9/16” Dia., 7 ¾” Length), For 7500lb Axles, Incl. Nuts
1764002 3/8″ Round U-Bolt (1/2” Dia., 5 ½” Length), For 3500lb Axles, Incl. Nuts
1765003″ Round U-Bolt (9/16” Dia., 7 ¼” Length), For 5200lb, 6000lb, 7000lb Axles, Incl. Nuts
17558923″ Round U-Bolt (9/16” Dia., 7 ¼” Length), Incl. Nuts, For 5200lb, 6000lb, 7000lb Axles
290-0024853” Square U-Bolt (1/2” Dia., 4 ½” Length)
1756663 ½” Round U-Bolt, For 8000lb Axles W/10 Leaf Springs, Incl. Nuts
11-644″ Round U-Bolt, For 9000lb Axles, Incl. Nuts
11-653 ½” Round U-Bolt, For 8000lb Axles, Incl. Nuts
11-705″ Round U-Bolt, For 12,000lb & 15,000lb Axles, Incl. Locknuts
11-775″ Round U-Bolt (5/8” Dia., 8 7/8” Length), For 10,000lb Axles, Incl. Nuts
0911485″ Round U-Bolt (5/8” Dia., 9 ½” Length), For 10,000lb GD Alko Axle, Incl. Nuts
suspension parts

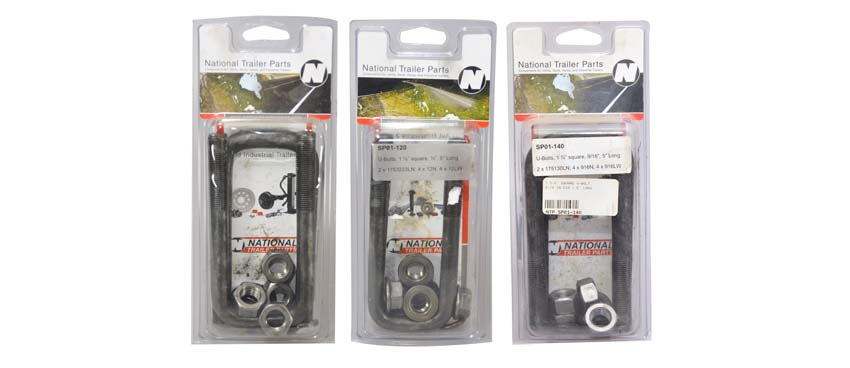

Packed U-Bolts



PART NUMBERDESCRIPTION
SP01-0201 ¾” Round U-Bolt (3/4” Dia., 4 ¼” Length), 2 Pk
SP01-0402 3/8” Round U-Bolt (1/2” Dia., 5 ½” Length), 2 Pk
SP01-0603″ Round U-Bolt (1/2” Dia., 7” Length), 2 Pk
SP01-0803″ Round U-Bolt (9/16” Dia., 7 ¼” Length), 2 Pk
SP01-1003 ½” Round U-Bolt (9/16” Dia., 8” Length), 2 Pk
SP01-1201 ½” Square U-Bolt (1/2” Dia., 5” Length), 2 Pk
SP01-1401 ¾” Square U-Bolt (9/16” Dia., 5” Length), 2 Pk
SP01-1602″ Square U-Bolt (9/16” Dia., 5 ¾” Length), 2 Pk
suspension parts

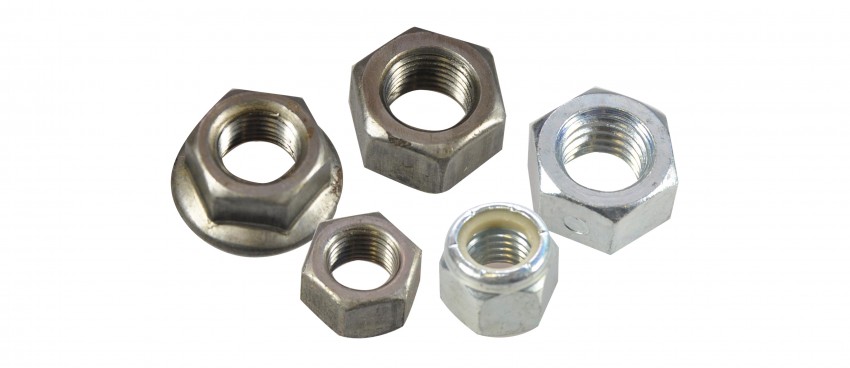

U-Bolt Nuts & Washers



PART NUMBERDESCRIPTION
12N½” U-Bolt Nut
38N3/8” U-Bolt Nut
6-113¾” U-Bolt Nut
916N9/16” U-Bolt Nut
6-385/8” U-Bolt Locknut
suspension parts

U-Bolt Axle Plates



PART NUMBERDESCRIPTION
115983U-Bolt Plate For 1 ½” Square Axles, Use 1 ¾” Wide Springs
116308U-Bolt Plate For 1 ¾” Square Axles, Use 1 ¾” Wide Springs
117535U-Bolt Plate For 1 ¾” Round Axles, Use 1 ¾” Wide Springs
117594U-Bolt Plate For 2” Square Axles, Use 1 ¾” Wide Springs
117595U-Bolt Plate For 2 3/8” Round Axles, Use 1 ¾” Wide Springs
12-4U-Bolt Plate For 2 3/8” Round Axles, Use 2” Wide Springs
117858U-Bolt Plate For 2 ½” Round Axles, Use 2” Wide Springs
117521U-Bolt Plate For 3” Round Axles, Use 1 ¾” Or 2” Wide Springs
117581U-Bolt Plate For 3 ½” Round Axles, Use 1 ¾” Or 2” Springs
12-42U-Bolt Plate For 4” Round Axles, Use 2” Wide Springs
12-49U-Bolt Plate For 5” Round Axles, Use 2 ½” Springs
12-53U-Bolt Plate For 5” Round Axles, Use 3” Wide Springs
12-46U-Bolt Plate For 5” Round Axles, Use 3” Wide Springs
suspension parts

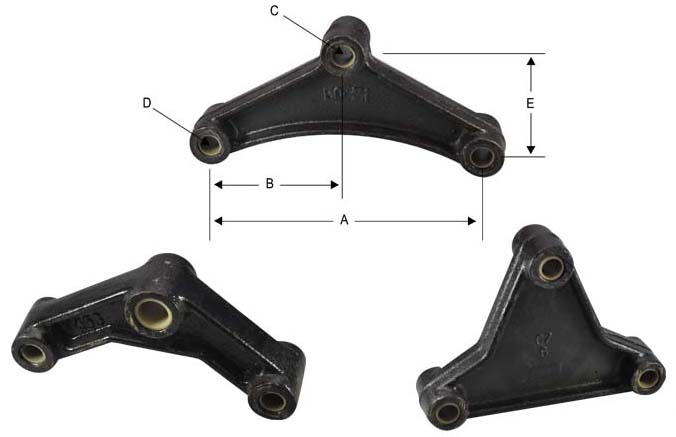

Equalizers



PART NUMBERDESCRIPTIONABCDEO.D.
RT3084Curved Equalizer7 ¾”3 7/8”9/16”9/16”2 7/8”1 ¾”
A2252CB34Curved Equalizer7 ¾”3 7/8”3/4″9/16”2 7/8”1 ¾”
13-104-2Curved Equalizer5 5/8”2 13/16”9/16”9/16”2”1 ¾”
220AIT3BShort Curved Equalizer6 1/4″3 1/8″3/4″9/16”2”1 ¾”
RT3080Tall Triangle Equalizer6″4″9/16”––1 ¾”
suspension parts

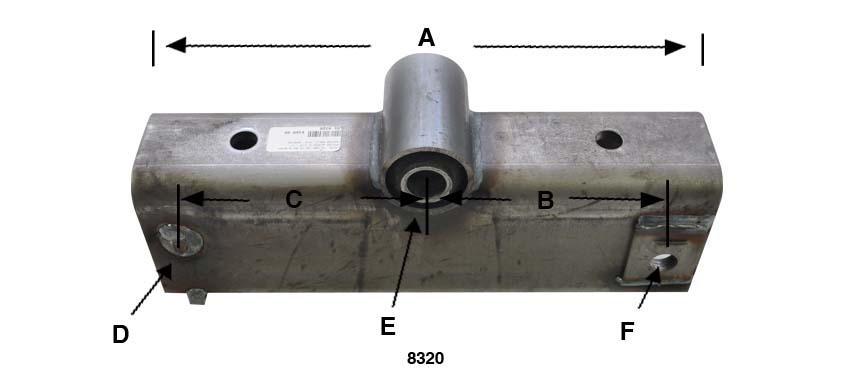

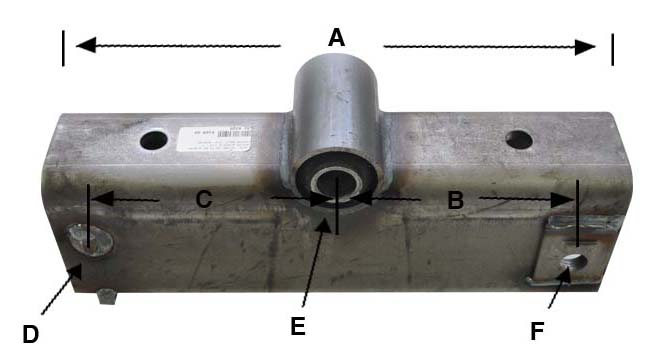

PART NUMBERDESCRIPTIONABCDEFI.D.
E4541Equalizer for 2″ Slipper Springs12″4 3/4″4 5/8″9/16”7/8”9/16″2 ¾”
541-1Equalizer for 2″ Slipper Springs13″5 1/2″6 1/2″9/16”7/8”9/16″2 5/16″”
541-3Equalizer for 2″ Slipper Springs11″4 3/4″4 3/4″9/16”7/8”9/16″2 5/16″
suspension parts
PART NUMBERDESCRIPTIONABCDEFI.D.
8319Equalizer, LH15 3/4″7″6 7/8″–1″3/4″3″
8320Equalizer, RH15 3/4″7″6 7/8″–1″3/4″3″
suspension parts

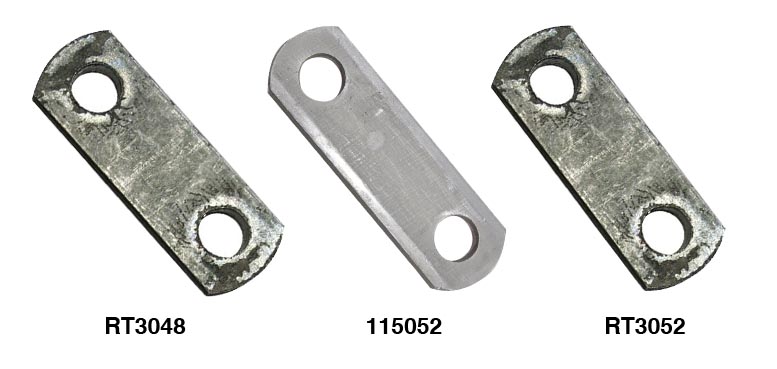

Shackle Straps (Shackle Links)



PART NUMBERDESCRIPTION
RT3048Shackle Strap, 2 1/4″ Hole Center To Hole Center
115052Shackle Strap, 2 5/8″ Hole Center To Hole Center
RT3052Shackle Strap, 3 1/8″ Hole Center to Hole Center
suspension parts

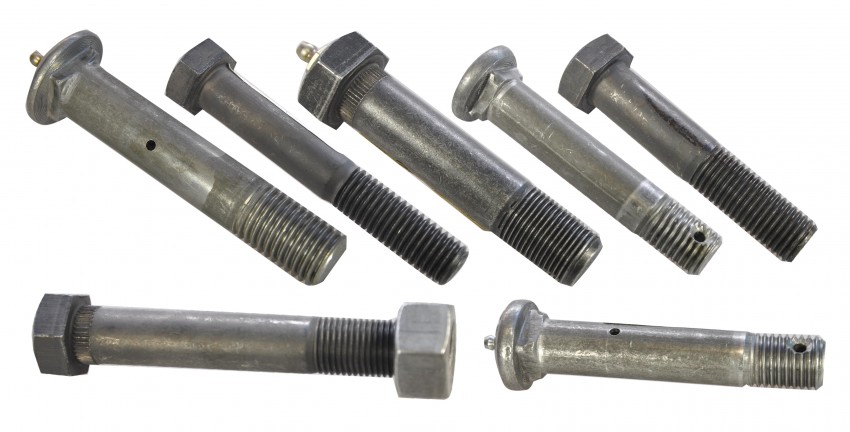

Equalizers / Suspension Bolts



PART NUMBERDESCRIPTION
RT3156Double Eye Shackle Bolt, 9/16” X 3”, Grease Zerk, Incl. Nut
166074Wet Equalizer Bolt, 7/8” X 4 5/8”, Incl. Nut
166079Slipper Spring Shackle Bolt, 9/16” X 3”, Incl. Nut
7-136-2Equalizer Bolt, 1”X 5 7/8”, Fits 10,000lb GD, Use Nut #6-112
7-181Spring Eye Bolt, 5/8” X 4”, Use W/Rubber Bushed Springs, Use Nut #6-38
126A1Wet Equalizer Bolt, ¾” X 3 ½”, Incl. Nut & Cotter Pin
166078Equalizer Bolt, 7/8”, Incl. Castle Nut & Cotter Pin
7-182Equalizer Bolt, 1” X 5”, New Style, 9000lb, Use Nut #6-112
RT3152Double Eye Shackle Bolt, 9/16” X 3”, Incl. Nut
800-1NF Bolt, 3/8” X 3 ½”
800-3Wet Equalizer Bolt, 7/8” X 5”, Fine Thread
800-6Wet Equalizer Bolt, ¾” X 4 ½”, Use Nut #820-7
800-8Equalizer Bolt, 7/8” X 4 5/8”
suspension parts

Suspension Nuts



PART NUMBERDESCRIPTION
820-7Fine Thread Nut, Fits ¾” Shackle Bolt, Nylon Lock
820-6Fine Thread Nut, Fits 7/8” Equalizer Bolt, Nylon Lock
090636Locknut, Fits 1” Equalizer Bolt, 10,000lb & 12,000lb, Hayes
6-113Locknut, ¾”, Fits Spring Bolt #7-135-2 & U-Bolt #11-70LN
6-111Locknut, 7/8”, Fits Bolt #7-1-1 & 7-260-2
6-72Locknut, 1 1/8”, Fits Dexter Equalizer C-Bolt 7-170, 10,000lb, 12,000lb, & 15,000lb
6-38Locknut, 5/8”, Fits Bolt #11-64LN & 1174LN, Spring Bolt #7-181
6-112Locknut, 1”, Fits #7-182 & 7-169, 10,000lb, 12,000lb, & 15,000lb Spring Eye Bolts, 9,000lb & 10,000lb GD Equalizer Bolts
165093Castle Nut, ¾”, Fits Wet Equalizer Bolt #126LN
