SOLAR

Click on the PART NUMBER to add parts to the “Your Saved Parts” to request a quote.

 Disclaimer: Images may not always be accurate to the part #

  If you do not find what you are looking for, contact us.

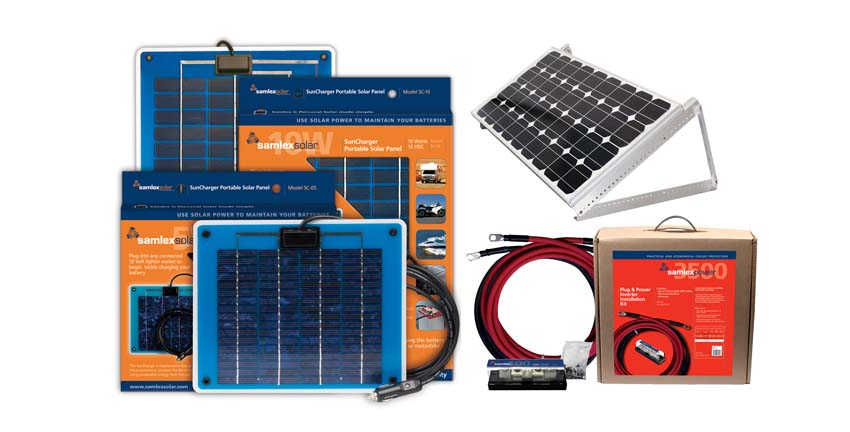

Solar Panels

Solar Panel

Solar power is a great alternative source of power for your RV, Cabin or even your home. Solar power is sunlight that is gathered from panels and converted into energy that power then travels through a Charge Controller which regulates the power that goes to the battery bank. Batteries store the power until it is needed in DC form. To run normal household products an inverter is needed which changes the power from DC to AC.

Panel Kits

These panel kits can be installed individually or as a group of panels in parallel to power all needs. They all can be mounted on the top of a RV, Cottage/Cabin, House or any stable structure. They come with all the necessary components and hardware to mount them. The kits sold come with or without a charge controller.

Solar Panel Kit
Part#449-30 Installation | How to Install 100W Samlex Solar Panel Kit
PART NUMBERMANUFACTURER NUMBERDESCRIPTION
449-31SSP-100-KIT100 Watt Solar Kit, Pair of 20’ Connecting Wires, Aluminum Mounting Brackets c/w Hardware
449-33SSP-150-KIT150 Watt Solar Kit, Pair of 20’ Connecting Wires, Aluminum Mounting Brackets c/w Hardware
449-30SRV-100-30A100 Watt Solar Kit, 30 amp Charge Controller, Connecting Wires, Aluminum Mounting Brackets c/w Hardware
449-32SRV-150-30A150 Watt Solar Kit, 30 amp Charge Controller, Connecting Wires, Aluminum Mounting Brackets c/w Hardware

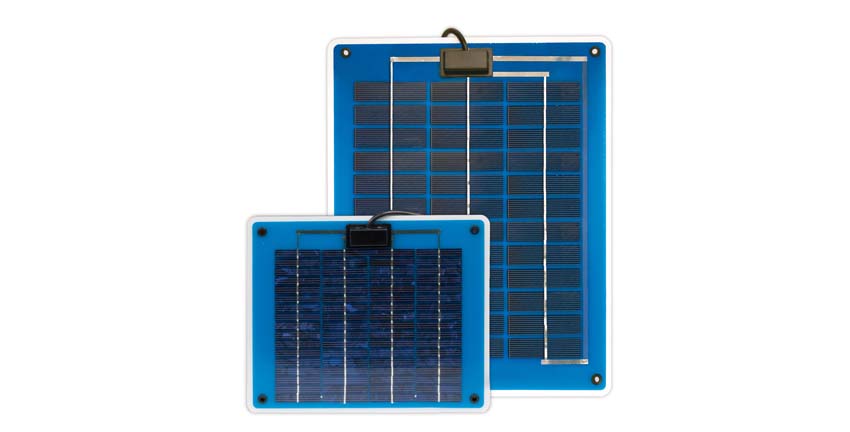

Portable Units

The portable kits range from just charging the battery in your vehicle to charging a battery bank. SC-05 & SC-10 are very small panels that would be used to trickle charge batteries while MSK-90 & MSK-35 are more directed to supplement battery banks. MSK-90 & MSK-35 connect directly to batteries with battery clamps and have a charge controller built into them that monitors the charge and power flow to the batteries. They are portable and have an aluminum stand that allows them to be rotated to face the sun and produce more power.

Portable Solar Panel

Part#449-30 Installation | Samlex MSK-90 Universal Radio

PART NUMBERMANUFACTURER NUMBERDESCRIPTION
449-20SC-054.8 Watts/ 0.33A Portable Charger, Plugs Into 12V Socket to Trickle Charge Batteries
449-21SC-109.5 Watts/ 0.56A Portable Charger, Plugs Into 12V Socket to Trickle Charge Batteries
449-34MSK-9090 Watt Portable Charge Kit, Insulated Carry Case, 32’ Cable, 10 amp Charge Controller, Pair of Battery Clamps
449-35MSK-35135 Watt Portable Charge Kit, Insulated Carry Case, 32’ Cable, 10 amp Charge Controller, Pair of Battery Clamps
19-2905ZS-160-P160 Watt Portable Charge Kit, Nylon Carry Bag, 15 amp  Charge Controller, Pair of Battery Clamps
19-2548ZS-200-P200 Watt Portable Charge Kit, Nylon Carry Bag, 15 amp  Charge Controller, Pair of Battery Clamps

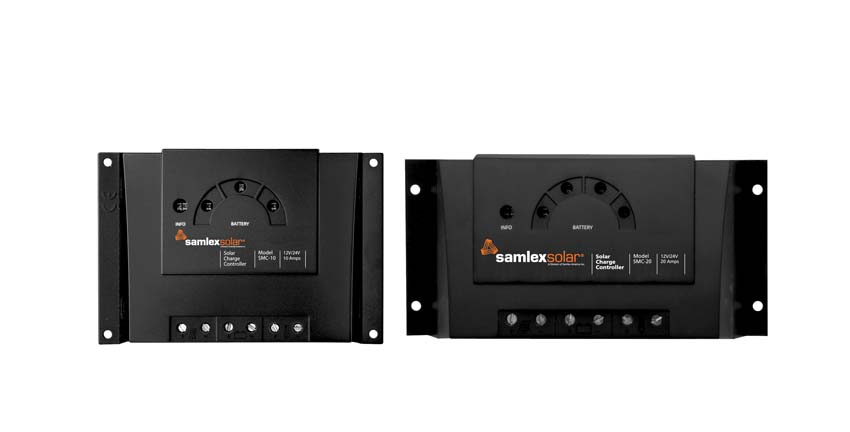

Charger Controllers

Charge Controllers regulate the power to batteries and prevents them from overcharging. When choosing a charge controller it is best to choose a model with a higher AMP rating as that decides how many panels you can run through that controller ( example: model SCC-30AB is a 30 AMP controller and can handle up to 500W or solar panels and SMC-20 can handle up to 330W).

Charger Controller
PART NUMBERMANUFACTURER NUMBERDESCRIPTION
449-10SCC-30AB30amp Charge Controller, Pulse Width Modulated (Polar White), Flush Mount. LED Status Indicators, 8 Charge Settings
449-41SMC-2020amp Charge Controller, Pulse Width Modulated (Polar White),  LED Status Indicators
449-40SMC-1010amp Charge Controller, Pulse Width Modulated (POLAR WHITEM), LED Status Indicators
449-8SCC-1208L8amp Micro-controller, 3 Stage Charging, Totally Sealed Weather Resistant
449-12PR151515amp Micro Controller, Pulse Width Modulated (POLAR WHITEM), LCD Display, Displays State of Charge
449-13PR202020amp Micro Controller, Pulse Width Modulated (POLAR WHITEM), LCD Display, Displays State of Charge

Inverters

Modified Sine Wave

There are many variables that go into choosing an inverter. To choose one you will have to figure out the total needs of Wattage that you will be using at any given time. Inverters do draw power themselves, the higher capacity of inverter the more power it will draw. Modified sine wave inverters should not be used with any devices or appliances that are power surge sensitive. Pure sine wave should be used for inductive loads like microwaves and motors they will run quieter and smoother. Pure sine should be used with any device that is sensitive to the irregularity of AC voltage.

Inverters
PART NUMBERMANUFACTURER NUMBERDESCRIPTION
441-20SAM-100-12100Watt Inverter, Plug Into Any 12v Lighter Socket, 3 Prong Socket and USB Plug
441-21SAM-250-12250Watt Inverter, Plug Into Any 12v Lighter Socket or Connect Directly to battery, 3 Prong Socket and USB Plug
441-22SAM-450-12450Watt Inverter, Plug Into Any 12v Lighter Socket or Connect Directly to battery,2-3 Prong Socket and USB Plug
Special OrderSAM-450-12E230v 450Watt Inverter, Plug Into Any 12v Lighter Socket or Connect Directly to battery,230v Prong Socket and USB Plug
441-23SAM-800-12800Watt Inverter, Plug Into Any 12v Lighter Socket or Connect Directly to battery,2-3 Prong Socket and USB Plug
441-24SAM-1000-121000Watt Inverter, High Efficiency Inverts 12VDC to 115VAC At 60Hz, load Controlled Cooling Fan, Low Battery Alarm
441-25SAM-1500-121500Watt Inverter, High Efficiency Inverts 12VDC to 115VAC At 60Hz, load Controlled Cooling Fan, Low Battery Alarm
441-26SAM-2000-122000Watt Inverter, High Efficiency Inverts 12VDC to 115VAC At 60Hz, load Controlled Cooling Fan, Low Battery Alarm
441-27SAM-3000-123000Watt Inverter, High Efficiency Inverts 12VDC to 115VAC At 60Hz, load Controlled Cooling Fan, Low Battery Alarm

Inverters

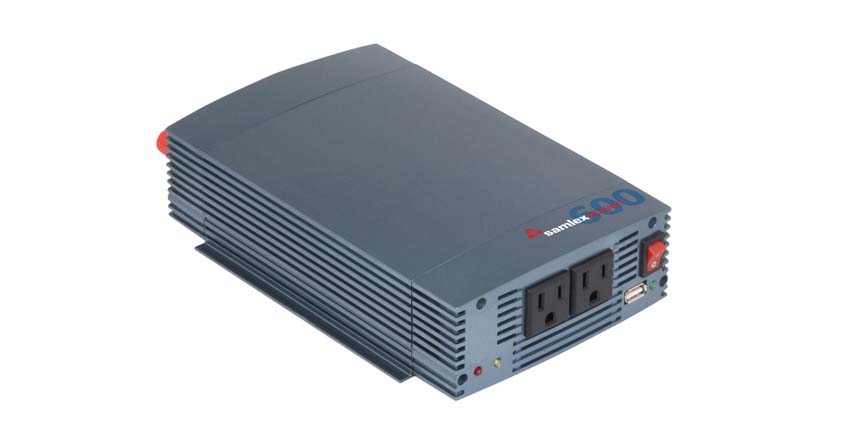

Pure Sine Wave

Inverter

SSW SERIES

PART NUMBERMANUFACTURER NUMBERDESCRIPTION
441-8SSW-350-12A350Watt Inverter, High Efficiency Inverts 12VDC to 115VAC at 60Hz, 2-3 Prong Outlets, 1 USB Port, c/w Battery Clamps, Fan Cooled, High Surge Power (2X)
441-9SSW-600-12A600Watt Inverter, High Efficiency Inverts 12VDC to 115VAC at 60Hz, 2-3 Prong Outlets, 1 USB Port, c/w Battery Clamps, Fan Cooled, High Surge Power (2X)
441-10SSW-1000-12A1000Watt Inverter, 2-3 Prong Outlet, Load Controlled cooling system, remote control w/ LCD display, High surge power (2X)
441-11SSW-1500-12A1500Watt Inverter, 2-3 Prong Outlet, Load Controlled cooling system, remote control w/ LCD display, High surge power (2X)
441-12SSW-2000-12A2000Watt Inverter, 2-3 Prong Outlet, Load Controlled Cooling System, Remote Control W/ LCD Display, High Surge Power (2X)
Special OrderSSW-R1-12BRemote Control for SSW Series
Inverters

PST SERIES

PART NUMBERMANUFACTURER NUMBERDESCRIPTION
439-1PST-300-12300 Watt Inverter, High Efficiency, 2-3 Prong GFCI Plug, Temperature Controlled Cooling Fan, Low Battery Alarm, Detachable Cable w/ 12V Adapter and Battery Clamps, Low Power Idle Draw
439-2PST-600-12600 Watt Inverter, High Efficiency, 2-3 Prong GFCI Plug, Temperature Controlled Cooling Fan, Low Battery Alarm, Detachable Cable w/ 12V Adapter and Battery Clamps, Low Power Idle Draw
439-3PST-1000-121000 Watt Inverter, High Efficiency, 2-3 Prong GFCI Plug, Temperature Controlled Cooling Fan, Low Battery Alarm, c/w Pin-Type Battery Cable Lugs, Low Power Idle Draw
439-4PST-1500-121500 Watt Inverter, High Efficiency, 2-3 Prong GFCI Plug, Temperature Controlled Cooling Fan, Low Battery Alarm, c/w Pin-Type Battery Cable Lugs or Can Be Hard-Wired, Low Power Idle Draw
439-5PST-2000-122000 Watt Inverter, High Efficiency, 2-3 Prong GFCI Plug, Temperature Controlled Cooling Fan, Low Battery Alarm, c/w Pin-Type Battery Cable Lugs or Can Be Hard-Wired, Low Power Idle Draw

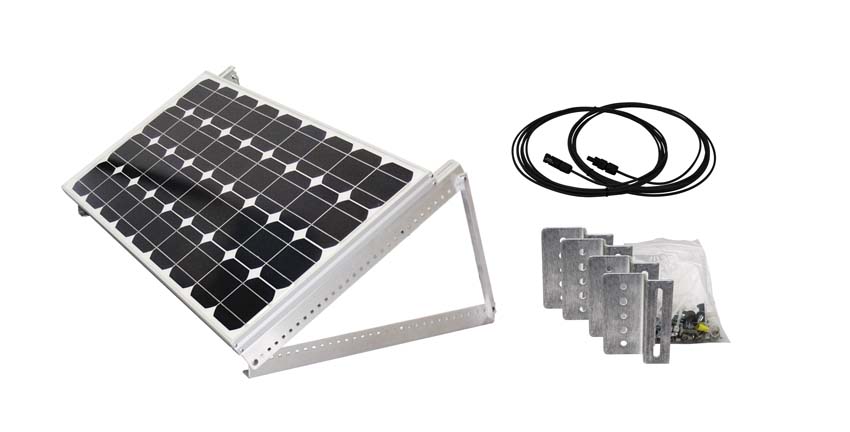

Solar Accessories

Parts & Accessories

PART NUMBERMANUFACTURER NUMBERDESCRIPTION
441-35STS-30Transfer Switch, Automatically Switches Separate AC Sources, Has Capacity of 30AMP
449-14SM5-KITFlat Mount Solar Panel Mounting Kit
449-15ADJ-28Aluminum Tilt mount, Fits any Samlex Solar Panels
449-17SBC-2Solar panel branch connectors
449-18MC4-2Solar panel Multi-Contact Connectors
449-16SCW-20-2Panel Connecting wires
magnacharge rv battery canada

Magnacharge RV Batteries

Magnacharge 12V Marine Starting/Dual Purpose
PART NUMBERDESCRIPTION
24M-650Magnacharge 12V Marine Dual Purpose 600MCA 70 RES @ 25A
24M-800Magnacharge 12V Marine Dual Purpose 750MCA 105 RES @ 25A
24M-1000Magnacharge 12V Marine Dual Purpose 950MCA 140 RES @ 25A
27M-1000Magnacharge 12V Marine Dual Purpose 1000MCA 160 RES @ 25A

*Note: Batteries cannot be shipped because it’s classified as Dangerous Goods. Only available as Warehouse Pick-Up.

PICKUP LOCATIONS

Magnacharge 6 / 8 / 12 Volt Deep Cycle – Dual Purpose Series
PART NUMBERDESCRIPTION
24DC-130Magnacharge 12V Deep Cycle Dual Purpose Series 700MCA, 120 RES @ 25A, 80 A.H. @ 20HR
24DC-140Magnacharge 12V Deep Cycle Dual Purpose Series 850MCA, 140 RES @ 25A, 85 A.H. @ 20 HR
24DC-180Magnacharge 12V Deep Cycle Dual Purpose Series 925MCA, 175 RES @ 25A, 105 A.H. @ 20HR
31DC-205Magnacharge 12V Deep Cycle Dual Purpose Series 1,000MCA, 195 RES @ 25A, 195 A.H. @ 20HR
GC-225Magnacharge 6V Deep Cycle Dual Purpose Series 440 RES @ 25A, 220 A.H. @ 20HR
31DC-205Magnacharge 8V Deep Cycle Dual Purpose Series 300 RES @ 25A, 156 A.H. @ 20HR
31DC-205Magnacharge 12V Deep Cycle Dual Purpose Series 260 RES @ 25A, 140 A.H. @ 20HR

*Note: Batteries cannot be shipped because it’s classified as Dangerous Goods. Only available as Warehouse Pick-Up.

PICKUP LOCATIONS
