RV VENTILATION
Click on the PART NUMBER to add parts to the “Your Saved Parts” to request a quote.
Disclaimer: Images may not always be accurate to the part #
If you do not find what you are looking for, contact us.

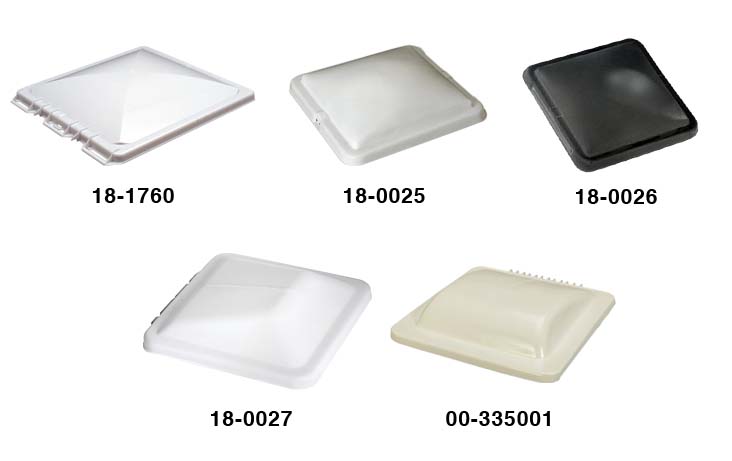

RV Vent Lids
With the exception of very old models, most vent lids are 14” X 14”. However, the most important thing to remember when purchasing a replacement vent lid is ensuring that the hinges on the new one match the hinges on your existing one, as there are several different styles and brands. Matching hinges saves you the hassle of finding out who made the vent and when (the only other way to accurately match vent lids).
| PART NUMBER | DESCRIPTION | DIMENSIONS | LID COLOR |
| 18-1710 | “New Style” RV Replacement Vent Lid, Fits Many Hengs & Ventline Vents | 14″ x 14″ | White |
| 18-1712 | “New Style” RV Replacement Vent Lid, Fits Many Hengs & Ventline Vents | 14″ x 14″ | Smoke |
| 18-1760 | Jensen RV Replacement Vent Lid Without Hinge Pin, Fits Hengs Universal & Ventline Vents | 14″ x 14″ | White |
| 18-1762 | Jensen RV Replacement Vent Lid Without Hinge Pin, Fits Hengs Universal & Ventline Vents | 14″ x 14″ | Smoke |
| 18-0025 | “Old Style” High-Profile RV Replacement Vent Lid, Continuous Hinge, For Ventline Vents Made Before 2008 | 14″ x 14″ | White |
| 18-0026 | “Old Style” High-Profile RV Replacement Vent Lid, Continuous Hinge, For Ventline Vents Made Before 2008 | 14″ x 14″ | Smoke |
| 18-1712 | “New Style” RV Replacement Vent Lid, Fits Many Hengs & Ventline Vents | 14″ x 14″ | Smoke |
| 18-0027 | “Wedge-Shape” RV Replacement Vent Lid, New Style Hinge | 14″ x 14″ | White |
| 18-0028 | “Wedge-Shape” RV Replacement Vent Lid, New Style Hinge | 14″ x 14″ | Smoke |
| 18-1110 | “Old Style” RV Replacement Vent Lid, For Ventline Pin-Hinged Vents | 14″ x 14″ | White |
| 18-1111 | “Old Style” RV Replacement Vent Lid, For Ventline Pin-Hinged Vents | 14″ x 14″ | Amber |
| 18-1112 | “Old Style” RV Replacement Vent Lid, For Ventline Pin-Hinged Vents | 14″ x 14″ | Smoke |
| 00-335001 | “Universal” RV Replacement Vent Lid, For Elixir/Hengs/Jensen/Ventline Roof Vents, Eliminates The Need To Match Hinge Types, Includes Mtg. Hardware | 14″ x 14″ | White |
| 00-335002 | “Universal” RV Replacement Vent Lid, For Elixir/Hengs/Jensen/Ventline Roof Vents, Eliminates The Need To Match Hinge Types, Includes Mtg. Hardware | 14″ x 14″ | Smoke |

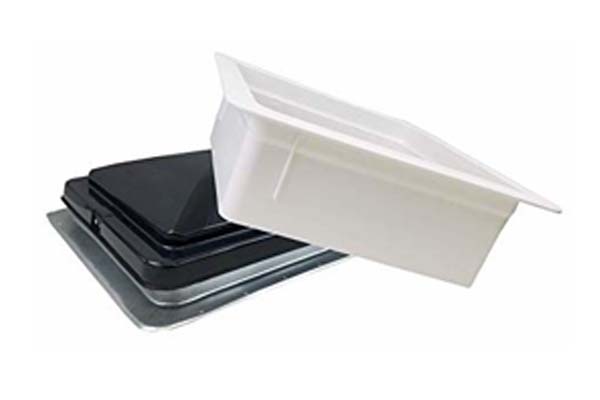

Complete Vent Lids (No Fans)
While found on almost every motorhome and travel trailer, these roof vents are also ideal ventilation options for use on enclosed & cargo trailers.
| PART NUMBER | DESCRIPTION | DIMENSIONS | LID COLOR |
| 18-1000 | Complete RV Roof Vent, Non-Painted Galvanized Metal Base, Includes White 3” Deep Radius Trim Garnish | 14″ x 14″ | White |
| 18-1001 | Complete RV Roof Vent, Non-Painted Galvanized Metal Base, Includes White 3” Deep Radius Trim Garnish | 14″ x 14″ | Amber |
| 18-1002 | Complete RV Roof Vent, Non-Painted Galvanized Metal Base, Includes White 3” Deep Radius Trim Garnish | 14″ x 14″ | Smoke |
| 18-1115 | Complete RV Roof Vent, White Painted Metal Base, Includes White 1 ½” Deep Radius Trim Garnish | 14″ x 14″ | White |
| 18-1116 | Complete RV Roof Vent, White Painted Metal Base, Includes White 1 ½” Deep Radius Trim Garnish | 14″ x 14″ | Amber |
| 18-1117 | Complete RV Roof Vent, White Painted Metal Base, Includes White 1 ½” Deep Radius Trim Garnish | 14″ x 14″ | Smoke |
| 18-1006 | Replacement Inner Garnish For Roof Vents, 4 ½” Deep | 14″ x 14″ | White |
| 18-1126 | “Wedge-Shape” RV Replacement Vent Lid, New Style Hinge | 14″ x 14″ | White |
| 18-1127 | Replacement Inner Garnish For Roof Vents, 4 ½” Deep | 14″ x 14″ | Colonial White |

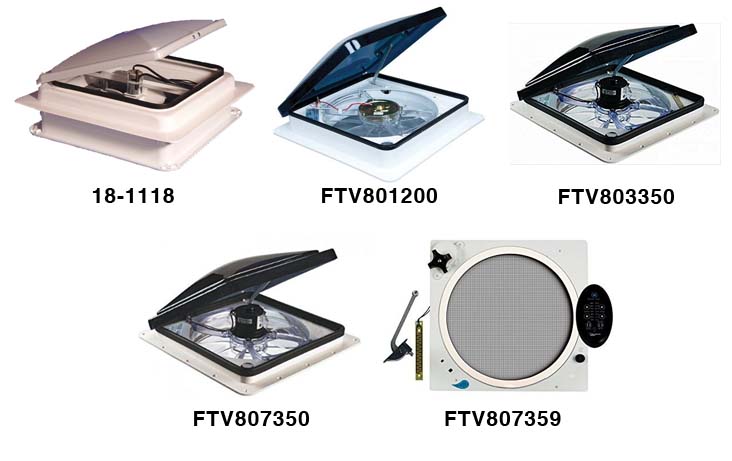

Complete RV Vents (With Fans)
A vent with a powerful built-in 12v fan can be a cost-effective way to cool down without resorting to an energy-hungry & expensive air conditioner.
| PART NUMBER | DESCRIPTION | DIMENSIONS | LID COLOR |
| 18-1005 | Complete RV Roof Vent with 12v Electric Fan, Non-Painted Galvanized Metal Base, Includes White 3” Deep Radius Trim Garnish | 14″ x 14″ | White |
| 18-1118 | Complete RV Roof Vent with 12v Electric Fan, White Painted Metal Base, Includes White 1 ½” Deep Radius Trim Garnish | 14″ x 14″ | White |
| 18-1119 | Complete RV Roof Vent with 12v Electric Fan & Light, White Painted Metal Base, Includes White 1 ½” Deep Radius Trim Garnish | 14″ x 14″ | White |
| FTV801200 | “Fan-Tastic Vent” Model 8000 Complete Roof Vent With Fan Features:
| 14″ x 14″ | Smoke |
| FTV801250 | “Fan-Tastic Vent” Model 4000R Complete Roof Vent With Fan Features:
| 14″ x 14″ | Smoke |
| FTV802250 | “Fan-Tastic” Model 5000 RBT Complete Roof Vent With Fan Features:
| 14″ x 14″ | Smoke |
| FTV803350 | “Fan-Tastic” Model 6000 RBTA Complete Roof Vent With Fan Features:
| 14″ x 14″ | Smoke |
| FTV807350 | “Fan-Tastic” Model 6600R Complete Roof Vent With Fan Features:
| 14″ x 14″ | Smoke |
| FTV807359 | “Fan-Tastic Vent” Model 6600 Upgrade Kit, Upgrades Any “Fan-Tastic Vent” Or “Create-A-Breeze” Fan To A Model 6600 (Grants All Features Shown On Above Model, Item #FTV807350) | ||
Roof Vent Installation & Accessories
| PART NUMBER | DESCRIPTION |
| 12-4133 | Universal Roof Vent Installation Kit, Includes ¾” X 8’ Grey Putty Tape, Screws, and Instructions |
| 12-4134 | Universal Roof Vent Installation Kit, Includes ¾” X 8’ White Butyl Tape, Screws, and Instructions |
| 06-5192 | Roof Vent Insulator With Reflective Surface, 2 ¾” Thick Foam, Fits Standard 14” X 14” Vents |
| 18-1152 | “Lights Out” Retractable Roof Vent Shade, Opens To 14 1/8” X 19” |

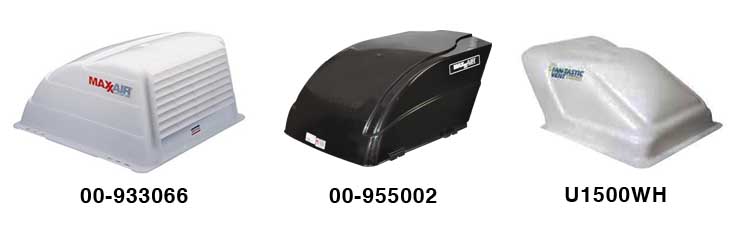

Vent Covers
| PART NUMBER | DESCRIPTION | COLOR |
| 00-933066 | “Maxxair” Roof Vent Cover, Fits Over Most 14” X 14” Vents, Not Recommended For Use With Powered Vents | Translucent White |
| 00-933069 | “Maxxair” Roof Vent Cover, Fits Over Most 14” X 14” Vents, Not Recommended For Use With Powered Vents | Black |
| 00-955001 | “Maxxair Fan Mate” Roof Vent Cover, Fits Over Most 14” X 14” Vents, Recommended For Use With Powered Vents, Includes Hinged Mounting Brackets | White |
| 00-955002 | “Maxxair Fan Mate” Roof Vent Cover, Fits Over Most 14” X 14” Vents, Recommended For Use With Powered Vents, Includes Hinged Mounting Brackets | Black |
| 00-933072 | “Maxxair II” Roof Vent Cover, Fits Over Most 14” X 14” Vents, Wider Than Original “Maxxair” Model For Greater Ventilation, Not Recommended For Use With Powered Vents, Includes Hinged Mounting Brackets | Translucent White |
| 18-1331 | “Maxxair II” Roof Vent Cover, Fits Over Most 14” X 14” Vents, Wider Than Original “Maxxair” Model For Greater Ventilation, Not Recommended For Use With Powered Vents, Includes Hinged Mounting Brackets | Smoke |
| 00-933075 | “Maxxair II” Vent Cover, Fits Over Most 14” X 14” Roof Vents, Wider Than Original “Maxxair” Model For Greater Ventilation, Not Recommended For Use With Powered Vents, Includes Hinged Mounting Brackets | Black |
| U1500WH | “Fan-Tastic Vent” Roof Vent Cover, Fits Over Most 14” X 14” Vents, Use With Unpowered & Powered Vents | White |
| U1500BL | “Fan-Tastic Vent” Roof Vent Cover, Fits Over Most 14” X 14” Vents, Use With Unpowered & Powered Vents | Black |

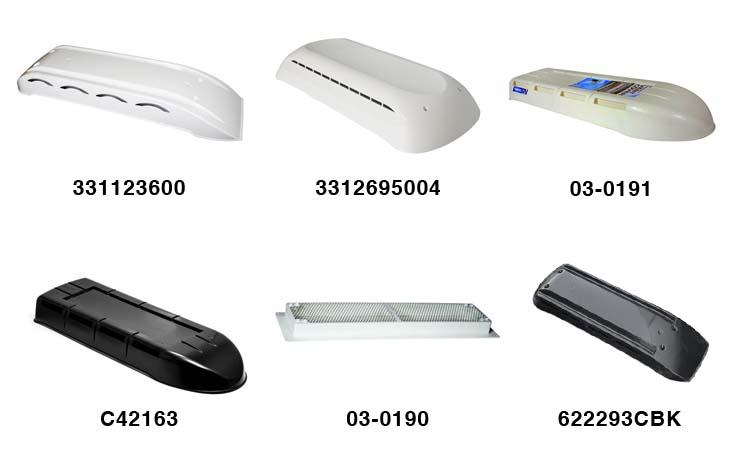

Refrigerator Rooftop Vent Covers
| PART NUMBER | DESCRIPTION | COVER OVERALL DIMENSIONS | BASE CUTOUT DIMENSIONS | MTG. HOLE SPACING |
| 3311236000 | Dometic Refrigerator Roof Vent, Includes Base & Cover, Polar White, Fits Many Dometic Models | 26 5/8” X 11 ¼” | 25 7/8” X 8 ¼” | 21 7/8” X 5 3/8” |
| 3312695004 | Replacement Cover For Dometic Roof Vent #3311236000 | 26 5/8” X 11 ¼” | — | 21 7/8” X 5 3/8” |
| 03-0191 | RV Refrigerator Roof Vent Cover, Fits Dometic, Camco, And Newer Norcold Bases, White | 26” X 7 ½” | — | Product Includes Variety Of Built-In Hole Spacing Options |
| C42163 | RV Refrigerator Roof Vent Cover, Fits Dometic, Camco, And Newer Norcold Bases, Black | 26” X 7 ½” | — | Product Includes Variety Of Built-In Hole Spacing Options |
| 03-0190 | Replacement White Base For Refrigerator Roof Vent #03-0191 | — | 24 3/8” X 5 5/8” | — |
| C42164 | Replacement Black Base For Refrigerator Roof Vent #C42163 | — | 24 3/8” X 5 5/8” | — |
| 03-0178 | Refrigerator Roof Vent Cover & Base, White | 22” X 9 ¾” | 20 5/8” X 5 ¾” | — |
| 03-0177 | Aerodynamic Refrigerator Roof Vent Cover, Fits Norcold Fridges, Polar White | 33” X 10” | — | 23 3/8” X 4” |
| 03-0174 | White Base for Aerodynamic Refrigerator Roof Vent Cover #03-0177 | — | 24” X 5 ¼” | — |
| 622293CBK | Aerodynamic Refrigerator Roof Vent Cover, Fits Norcold Fridges, Black | 33″ x 10″ | — | 23 3/8” X 4” |
| 625161BBK | Black Base for Aerodynamic Refrigerator Roof Vent Cover #625161BBK | — | 24″ x 5 ¼” | — |
Refrigerator Side Vents & Access Doors
| PART NUMBER | DESCRIPTION | CUTOUT DIMENSIONS | OVERALL DIMENSIONS | BRAND |
| 03-0171 | Lower Side Refrigerator Vent, Polar White | 9 ¾” X 19 ¾” | 11 1/8” X 20 11/16” | Norcold |
| 03-0185 | Refrigerator Access Door, Polar White | 13 ¾” X 21 ½” | 16 ½” X 24 ¼” | Norcold |
| 621156BK | Refrigerator Access Door, Black | 13 ¾” X 21 ½” | 16 ½” X 24 ¼” | Norcold |
| 03-0179 | Refrigerator Access Door, Polar White | 6 3/16” X 17 13/16” | — | Norcold |
| 03-0373 | Atwood Refrigerator Side Vent, Black | 13 5/8” X 21 3/8″ | — | Dometic |
| 3109492003 | 20” Refrigerator Side Vent, Polar White | 9 1/16” X 19 ¼” | — | Dometic |
| 3316941010 | 20” Refrigerator Access Door/Side Vent, Polar White | 13” X 21” | 15” X 23” | Dometic |
| 3316941005 | 24” Refrigerator Access Door/Side Vent, Black | 13 11/16” X 21 3/8” | 16 5/16” X 24” | Dometic |
| 3109349005 | 30” Refrigerator Side Vent, Polar White | 13 5/8” X 28 ¼” | — | Dometic |
| 3109349065 | 30” Refrigerator Side Vent, Black | 13 5/8” X 28 ¼” | — | Dometic |
Plumbing & Utility Vents
| PART NUMBER | DESCRIPTION |
| 18-1509 | RV Plumbing Vent Kit, Fits 1” – 2 3/8” Outer Diameter Pipes, Includes Putty Tape & Screws, Colonial White Cap |
| 18-1510 | RV Plumbing Vent Kit, Fits 1” – 2 3/8” Outer Diameter Pipes, Includes Putty Tape & Screws, Polar White Cap |
| 18-1507 | Replacement Cap For RV Plumbing Vents, Fits Up To 2” Pipe, Colonial White |
| 18-1508 | Replacement Cap For RV Plumbing Vents, Fits Up To 2” Pipe, Polar White |
| C40137 | Replacement Cap For RV Plumbing Vents, Fits Up To 2” Pipe, Black |
| 04-2066 | Deluxe Exhaust Vent With Locking Damper, Cutout: 10 ¼” X 3 ¼”, Collar Length: 1 ¾”, White |
| 04-2065 | Deluxe Exhaust Vent With Locking Damper, Cutout: 10 ¼” X 3 ¼”, Collar Length: 1 ¾”, Colonial White |
Floor Registers
When referring to floor registers, dampered refers to a register having a built-in louver one can close to restrict airflow. An undampered register lacks such a feature.
| PART NUMBER | DESCRIPTION | CUTOUT DIMENSIONS | COLOR | MATERIAL |
| 03-4982 | Rectangular Floor Register, Undampered | 2” x 10″ | White | Metal |
| 03-4983 | Rectangular Floor Register, Undampered | 2” X 10” | Brown | Metal |
| 03-4984 | Rectangular Floor Register, Dampered | 4″ x 8″ | White | Metal |
| 03-4985 | Rectangular Floor Register, Dampered | 4″ x 8″ | Brown | Metal |
| 03-4986 | Rectangular Floor Register, Dampered | 4″ x 10″ | White | Metal |
| 03-4987 | Rectangular Floor Register, Dampered | 4″ x 10″ | Brown | Metal |
| 03-4980 | Rectangular Floor Register, Dampered | 2 ¼” X 9 7/8” | White | Plastic |
| 03-4981 | Rectangular Floor Register, Dampered | 2 ¼” X 9 7/8” | Tan | Plastic |
| 03-4970 | Round Floor Register Without Louvers | 4” Diameter | Dark Brown | Plastic |
| 03-4971 | Round Floor Register Without Louvers | 4″ Diameter | Beige | Plastic |
| 03-4972 | Round Floor Register Without Louvers | 4” Diameter | White | Plastic |
| 03-4975 | Round Floor Register With Louvers | 4″ Diameter | Dark Brown | Plastic |
| 03-4976 | Round Floor Register With Louvers | 4″ Diameter | Beige | Plastic |
| 03-4977 | Round Floor Register With Louvers | 4″ Diameter | White | Plastic |
