COUPLERS & HITCH BALLS

Click on the PART NUMBER to add parts to the “Your Saved Parts” to request a quote.

 Disclaimer: Images may not always be accurate to the part #

 If you do not find what you are looking for, contact us.

Ball Couplers



PART NUMBERDESCRIPTIONBALL SIZETONGUE SIZEFINISHCAPACITYMAKE
80050Ball Coupler2”3” SquarePainted3500lbsAtwood
80060Ball Coupler2”3” SquarePainted5000lbsAtwood
2B4Ball Coupler2”3” SquarePainted5000lbsBulldog/Hammerblow
3B4Ball Coupler2”3” SquarePainted7000lbsBulldog/Hammerblow
5145Ball Coupler2”2” SquareOily3500lbsShelby
A-256Ball Coupler2 5/16”Fits ‘C’ BracketPainted14,000lbsBulldog/Hammerblow
2425160Ball Coupler2 5/16”Fits ‘C’ BracketPainted14,000lbsWallace Forge
80131Ball Coupler2 5/16”3” SquarePainted8500lbsAtwood
80081Ball Coupler2”2” SquarePainted5000lbsAtwood
5143Ball Coupler1 7/8”2” SquareOily2000lbsShelby
1755000Ball Coupler2 5/16”3” SquarePainted20,000lbsTitan
3B6MBall Coupler2”Fits ‘C’ BracketPainted7000lbsBulldog
4B6MBall Coupler2 5/16”Fits ‘C’ BracketPainted12,500lbsBulldog/Hammerblow
4B4Ball Coupler2 5/16”3” SquarePainted12,500lbsBulldog/Hammerblow

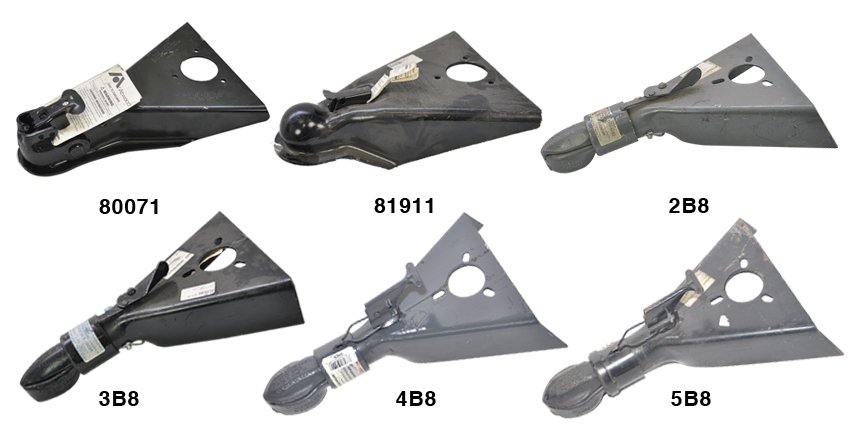

A-Frame Couplers



PART NUMBERDESCRIPTIONBALL SIZETONGUE SIZEFINISHCAPACITYMAKE
80071A-Frame Ball Coupler2”50Painted5000LBSAtwood
81911A-Frame Ball Coupler2 5/16”50Painted10,000LBSAtwood Class4
2B8A-Frame Ball Coupler2”  5000LBSBulldog/Hammerblow
3B8A-Frame Ball Coupler2”50Painted7000LBSBulldog/Hammerblow
4B8A-Frame Ball Coupler2 5/16”50Painted12,500LBSBulldog/Hammerblow
5B8A-Frame Ball Coupler2 5/16”  15,000LBSBulldog

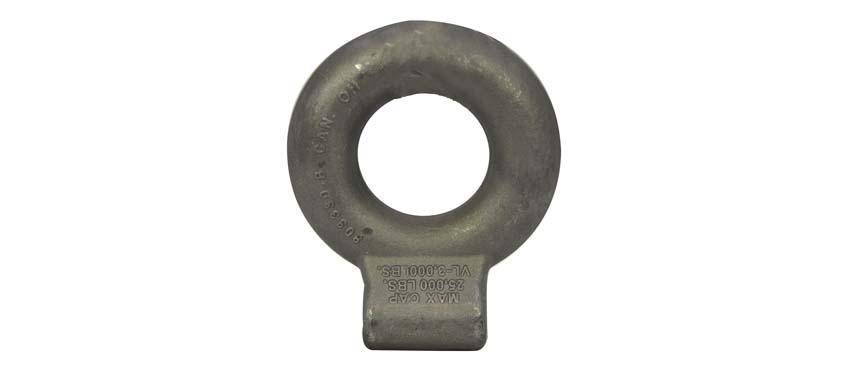

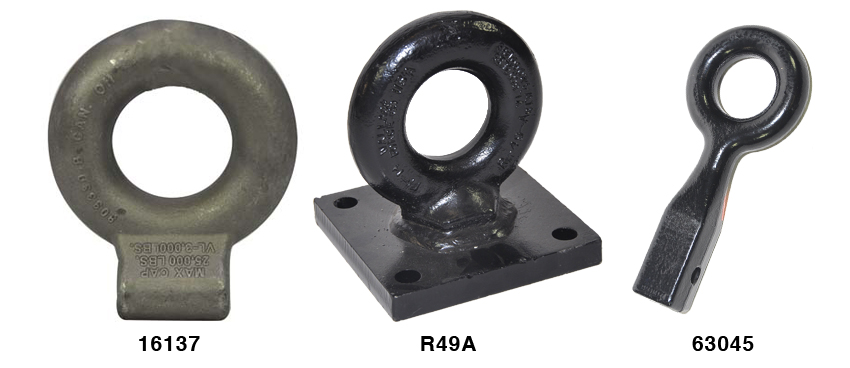

Pintle Eyes/Pintle Eye Accessories



PART NUMBERDESCRIPTION
161373” Pintle Ring, 20,000 Lb Cap., Fits ‘C’ Bracket, Adjustable
R49ADraw Bar, 2 ½” Eye, Fits 6″ Sq. Tongue, 42,000lb Cap., 4 Bolt
630452 ½” Pintle Ring, 2” Sq. Drawbar Welded On, 7 3/8”L, 10,000lb Cap., Forged



pintle hook

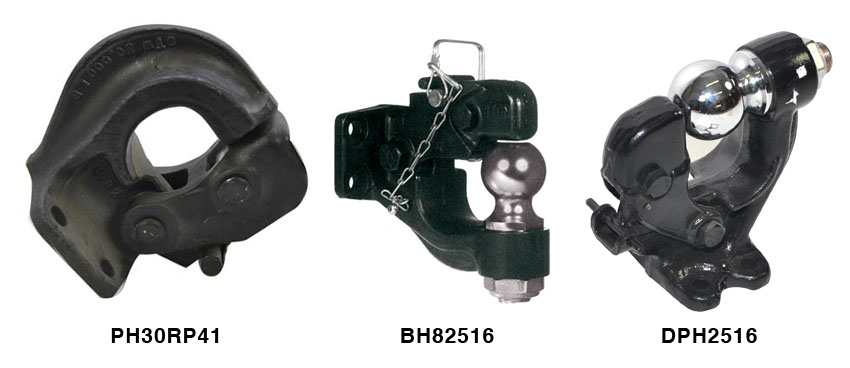

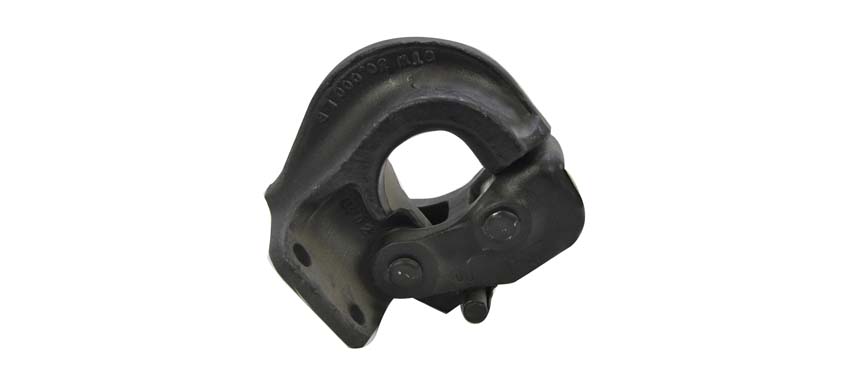

Pintle Hooks/Pintle Hook Accessories



PART NUMBERDESCRIPTION
PH30RP41Pintle Hook, 30,000lb Cap., Fast Latch, 4 Bolt, Holland
BH82516Pintle Hook, Fits 2 5/16” Ball, 16,000lb Cap.
DPH2516Combined Pintle Hook & Ball, 2 5/16” Ball, 10,000lb Ball Cap., 16,000lb Cap.



Pintle Hook Mounts

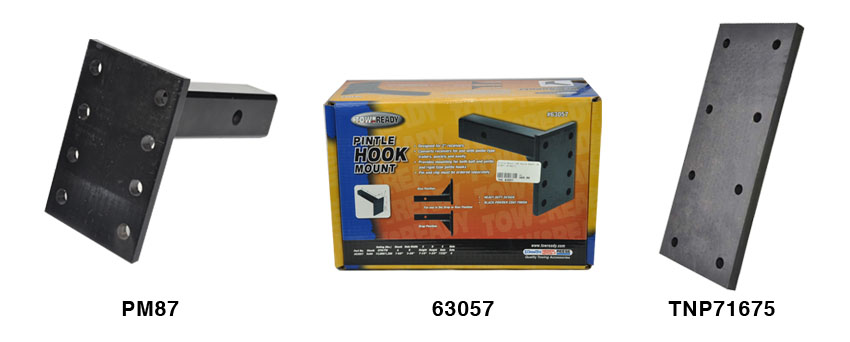

Pintle Hook Mounts & Bolts



PART NUMBERDESCRIPTION
PM87Pintle Hook Mount
63057Pintle Mount, Fits 2” Sq. Tongue, 7 5/8”L, 12,000lb Cap., 8 Bolt
TNP71675Trailer Nose Plate, 3/4″ X 7″ X 16″, 8 Hole, Use With R49A & 1250-15



Hitch Balls



PART NUMBERDESCRIPTIONBALL DIAMETEROVERALL HEIGHTSHANK DIAMETERSHANK LENGTHFINISHGTW
17834CLSHitch Ball1 7/8”2 9/16”¾”2 5/16”Chrome Plated2000lbs
1781CLSHitch Ball1 7/8”2 5/8”1”2”Chrome Plated2000lbs
63834Hitch Ball2 5/16”3 3/8”1 ¼”2 3/8”Chrome Plated10,000lbs
73703Hitch Ball2 5/16”4 1/8”1 ¼”1 3/8”Black Paint26,000lbs
63820Hitch Ball2” 4 5/16″¾”1 ½”Chrome Plated3500lbs
63845Hitch Ball2” 5″1”2 1/8”Chrome Plated7500lbs
63849Hitch Ball2” 6″1”3 3/8”Chrome Plated7500lbs
63832Hitch Ball2” 5 1/4″1 ¼” Chrome Plated10,000lbs
63847Hitch Ball2 5/16” 5 1/4″1”2 1/8”Chrome Plated7500lbs
63836Hitch Ball2 5/16” 5 7/8″1 ¼”2 ¾”Chrome Plated14,000lbs

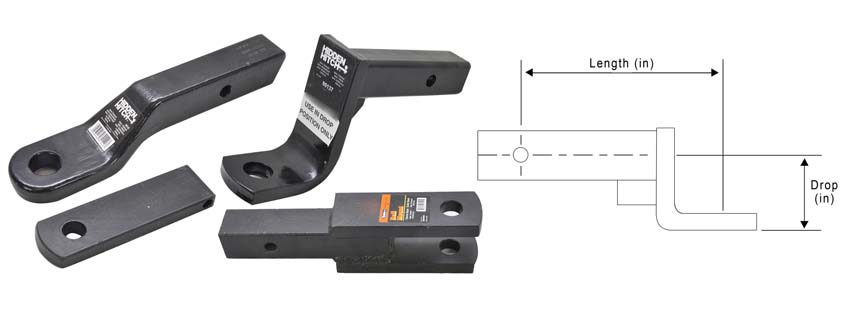

Ball Mounts



PART NUMBER

DESCRIPTIONBALL MOUNT TYPELENGTHDROPRISETUBETW & GTW/CAPBENDSHANK HOLE
1803065Ball Mount 2″ Square 800lbs/8000lbsClevis8”N/AN/A2” Square800lbs/8000lbsN/A

1”

80410

Ball Mount 2″ Square 6000lbsClevis11”3”N/A2” Square6000lbsN/A

1”

80125

Ball Mount 8″ Drop 12,000lbsDrop9 ½”8”7”2” Square12,000lbs90o 1 1/4″

80137

Ball Mount 6″ Drop 10,000lbsDrop9”6” 5″2” Square10,000lbs90o 1 1/4″
80123Ball Mount 4″ Drop 12,000lbsDrop8 ½”4”3”2” Square12,000lbs90o

 1 1/4″

80133

Ball Mount 4″ Drop 1000lbs/10,000lbsDrop9”4”2 ¾”2” Square1000lbs/10,000lbs90o 1 1/4″
BMHD30010Ball Mount 2″ Drop 16,000lbsDrop8 ½”2”1”2” Square16,000lbs 45o

1 ¼”

80142

Ball Mount 2″ Drop 16,000lbsDrop8 ½”2”¾”2” Square16,000lbs N/A 1 1/4″
80132Ball Mount 2″ Drop 10,000lbsDrop8 ½”2”¾”2” Square10,000lbs N/A

 1 1/4″

D-128

Ball Mount 2″ Drop 15,000lbsDrop8 ½”2” 2” Square15,000lbs 90o1 ¼”
99-10-006Ball Mount 2″ Drop 6,000lbsDrop8 ½”2”¾”2” Square6000lbs 45o

 1″

99-10-007

Ball Mount 2″ Drop 6,000lbsDrop10 ½”2”¾”2” Square6000lbs 45o

 1″

49234

Ball Mount 2″ Drop 6,000lbsDrop8”3”1 5/8”
49312Ball Mount 2″ Drop 6,000lbsDrop9 ½”1”1 ¼”1 ¼” Square

350lbs/3500lbs



Adjustable Shank

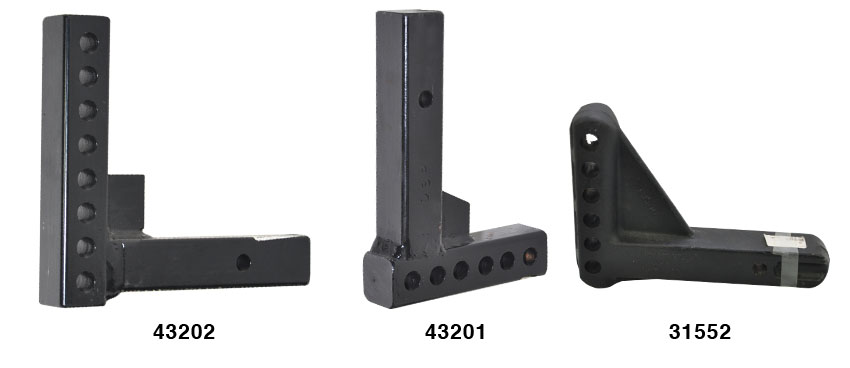

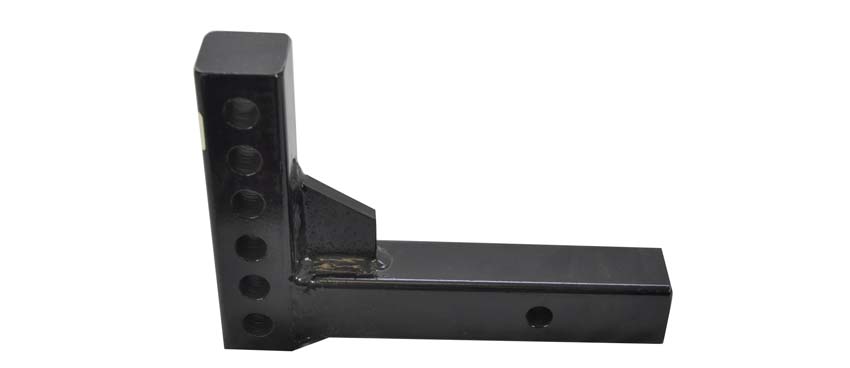

Adjustable Shanks



PART NUMBERDESCRIPTIONSHANK TYPELENGTHADJUSTMENT HOLESTUBE
43202Adjustable ShankAdjustable Bolt-On10”82” Square
43201Adjustable ShankAdjustable Bolt-On10”62” Square
31552Adjustable ShankCenterline Forged 11 1/2″ 6 2″ Square



Adjustable Ball Mount

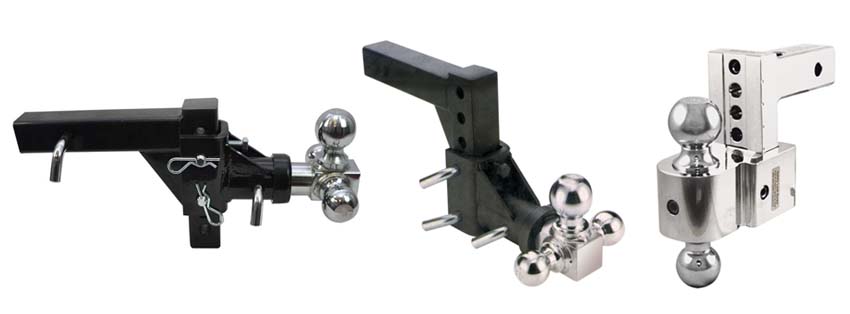

Adjustable Ball Mounts



PART NUMBER

BALL SIZE / CAPACITY

DESCRIPTION

MXV90001-7/8” – 6,000Lbs

2” – 7,500Lbs

2-5/16” – 10,000

16” length, 6” Drop/Rise, Adjustable Square Draw Bar With 3 Chrome Balls 2″ x 2″
MXV9000R1-7/8” – 6,000Lbs

2” – 7,500Lbs

2-5/16” – 10,000

16” length, 6” Drop/Rise, Adjustable Round Draw Bar With 3 Chrome Balls 2″ x 2″
D630712” – 10,000Lbs

2-5/16” – 14,000Lbs

12” Length, 4-5/8” Drop, 5-7/8” Rise, Adjustable Square Draw Bar With 2 Chrome Balls
D630701-7/8” – 2,000Lbs

2” – 10,000Lbs

2-5/16” – 14,000Lbs

11-9/16” Length, 4-3/4” Drop, 5-11/16” Rise, Adjustable Square Draw Bar With 3 Chrome Balls 2″ x 2″
AD100012” – 10,000Lbs

2-5/16” – 14,000Lbs

Two position solid steel shank (10½” or 11½” long) 2” Receiver Tube
Aluminum Ballmount
DT-STBM64002” – 10,000Lbs

2-5/16” – 10,000Lbs

12” Length, 4”Drop, 5” Rise, 2” Receiver, 1500Lbs Tongue Weight
DT-STBM66002” – 10,000Lbs

2-5/16” – 10,000Lbs

12” Length, 6”Drop, 7”Rise, 2” Receiver, 1500Lbs Tongue Weight
DT-STBM68002” – 10,000Lbs

2-5/16” – 10,000Lbs

12” Length, 2” Drop, 9” Rise, 2” Receiver, 1500Lbs Tongue Weight
DT-STBM70002” – 10,000Lbs

2-5/16” – 10,000Lbs

12” Length, 4” Drop, 11” Rise, 2” Receiver, 1500Lbs Tongue Weight
DT-ALBM66002” – 10,000Lbs

2-5/16” – 10,000Lbs

12” Length, 6” Drop, 7” Rise, 2” Receiver, 1500Lbs Tongue Weight
DT-ALBM68002’’ – 10,000Lbs

2-5/16” – 10,000Lbs

12” Length, 8” Drop, 9” Rise, 2” Receiver, 1500Lbs Tongue Weight
DT-ALBM70002” – 10,000Lbs

2-5/16” – 10,000Lbs

12” Length, 10” Drop, 11” Rise, 2” Receiver, 1500Lbs Tongue Weight
2-1/2” Receiver Aluminum Ballmount
DT-ALBM66252” – 10,000Lbs

2-5/16” – 10,000Lbs

12” Length, 10” Drop, 11” Rise, 2-1/2” Receiver, 1500Lbs Tongue Weight

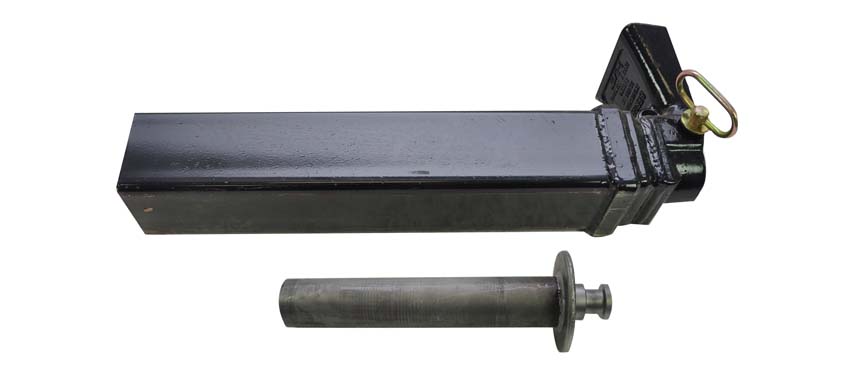

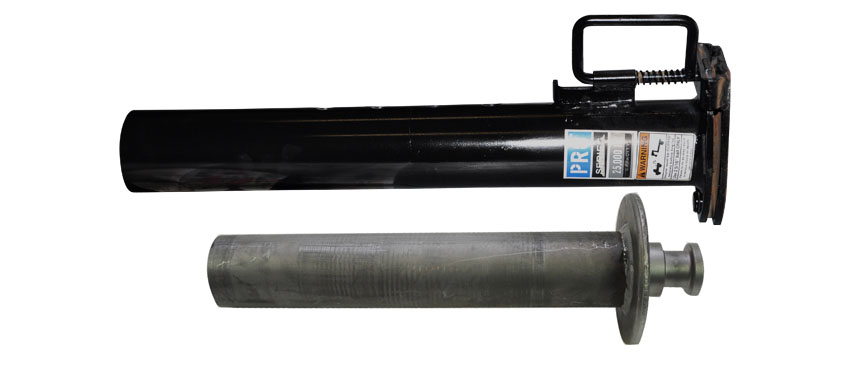

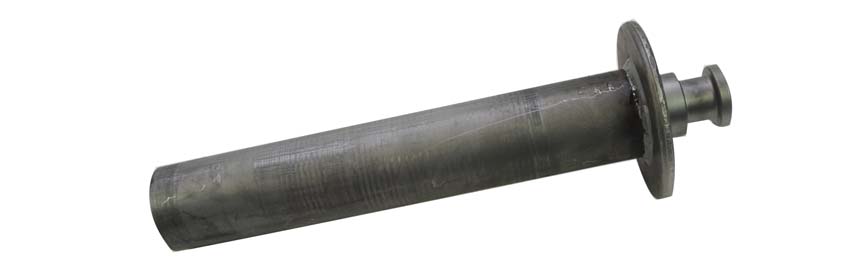

Gooseneck Couplers Kingpin

Gooseneck Couplers & Kingpins



PART NUMBERDESCRIPTIONDIAMETERPIPE DIAMETERCAPACITY
500021Gooseneck Ball Coupler2 5/16”3-1/2 Square Pipe 20,000lbs
HBQ2516ADJGooseneck Ball Coupler2 5/16”4-1/2 Square Pipe25,000lbs
KP5G-R25KingpinN/A 4 1/2″ Round Pipe25,000lbs
2085205-DrilledWallace KingpinN/A4” Round Pipe30,000lbs
500022Gooseneck Ball Coupler2 5/16”4 ½” Square Pipe 20,000lbs
HBA2516-30KAdjustable Gooseneck Ball Coupler2 5/16”4 ½” Round Pipe30,000lbs
HBA2516-25KAdjustable Gooseneck Ball Coupler2 5/16”4 ½” Round Pipe25,000lbs

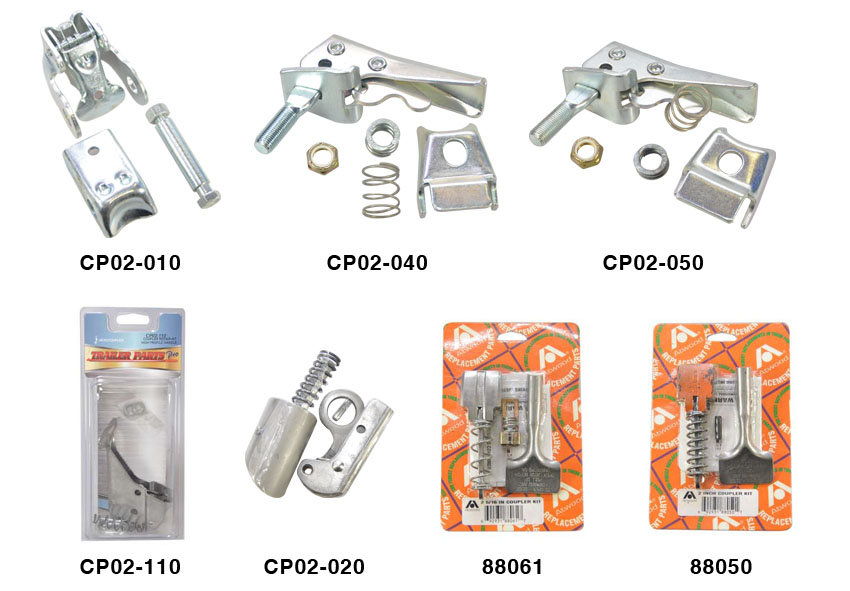

Coupler Repair Kit

Coupler Repair Kits



PART NUMBERDESCRIPTIONMAKE COUPLER STYLEBALL SIZE
CP02-010Coupler Repair KitAtwoodYoke Style2”
CP02-040Coupler Repair KitShelbyPosi-Lock, Class 11 7/8”
CP02-050Coupler Repair KitShelbyPosi-Lock Class22”
CP02-110Coupler Repair KitBulldog/HammerblowHigh-profile HandleAll
CP02-020Coupler Repair KitAtwood801312 5/16”
88061Coupler Repair KitAtwood Yoke Style2 5/16”
88050Coupler Repair KitAtwood880502”
J2516Coupler Repair KitAtwoodJ25162 5/16”
