BRAKE ASSEMBLIES
Click on the PART NUMBER to add parts to the “Your Saved Parts” to request a quote.
Disclaimer: Images may not always be accurate to the part #

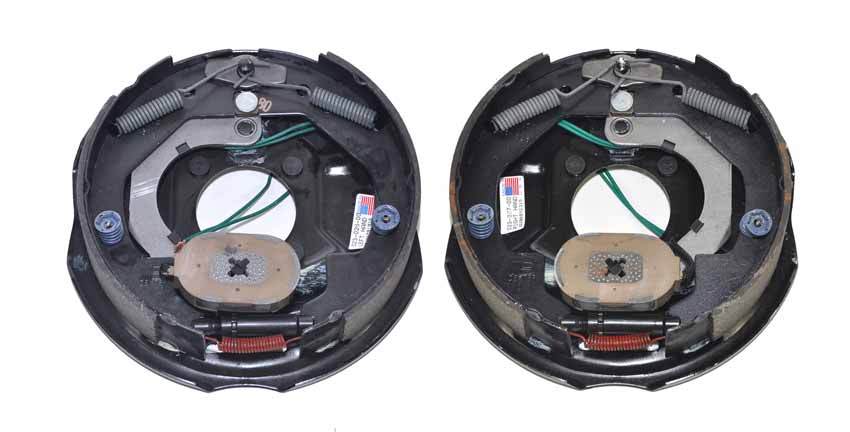

Dexter Complete Electric – 7” x 1-1/4”
PART NUMBER | DESCRIPTION |
|---|---|
| 023-047-00 | LH Brake 2000lbs Complete Assembly |
| 023-048-00 | RH Brake 2000lbs Complete Assembly |
REPLACEMENT PARTS
| PART NUMBER | DESCRIPTION |
BP01-068 | Round Magnet Kit |
BP04-040 | Shoe and Lining (One Wheel) |
BP06-040 | Shoe Hold Down Springs |
BP07-040 | Shoe Return Spring |
BP08-040 | Adjuster Spring |
BP10-040 | Adjuster |
K71-325 | Actuating Arm for LH Dexter 7” x 1-1/4” Brakes |
K71-326 | Actuating Arm for RH Dexter 7” x 1-1/4” Brakes |
K71-361-00 | Shoe Hold Down Spring for Dexter 7” x 1-1/4” Brakes |
BP10-220 | Adjuster Dust Plug |
Dexter Complete Electric – 10”x 2-1/4”
| PART NUMBER | DESCRIPTION |
|---|---|
023-026-00 | LH Brake 3500lbs Complete Assembly |
023-027-00 | RH Brake 3500lbs Complete Assembly |
REPLACEMENT PARTS
| PART NUMBER | DESCRIPTION |
|---|---|
| BP01-110 | Plain Magnet Kit (Green Wire) |
| BP01-115 | Magnet Kit Dexter (Green Wire) w/ Protector Sleeve |
| BP04-090 | Shoe and Lining One Wheel |
| BP02-170 | LH Actuating Arm |
| BP02-180 | RH Actuating Arm |
| BP06-120 | Shoe Hold Down Springs |
| BP07-105 | Shoe Return Spring, Dual Return, Pkg of 2 |
| BP08-070 | Adjuster Spring |
| BP10-060 | Dexter Adjuster |
| BP10-220 | Adjuster Dust Plug |

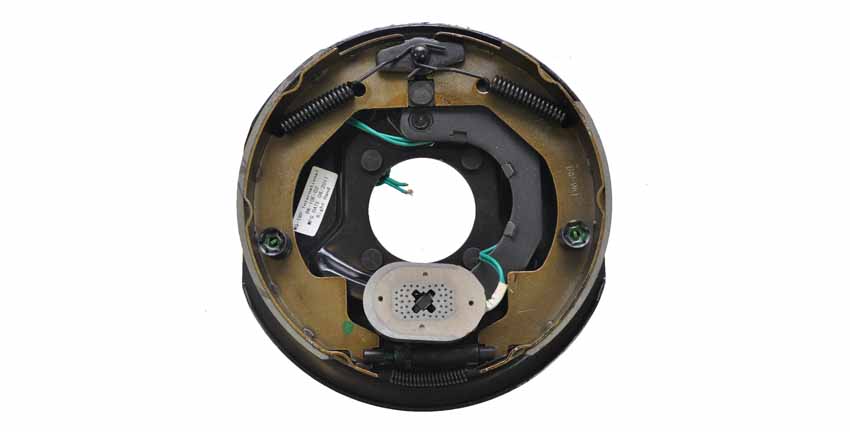

Axletek Complete Electric – 10″ x 2-1/4″
PART NUMBER | DESCRIPTION |
|---|---|
AXLB10E-22 | RH Brake 3500lbs Complete Assembly |
AXLB10E-21 | LH Brake 3500lbs Complete Assembly |
REPLACEMENT PARTS
| PART NUMBER | DESCRIPTION |
|---|---|
BP01-110 | Plain Magnet Kit (Green Wire) |
| BP01-115 | Magnet Kit Dexter (Green Wire) w/ Protector Sleeve |
BP04-090 | Shoe and Lining One Wheel |
| BP02-170 | LH Actuating Arm |
BP02-180 | RH Actuating Arm |
| BP06-120 | Shoe Hold Down Springs |
BP07-105 | Shoe Return Spring, Dual Return, Pkg of 2 |
| BP08-070 | Adjuster Spring |
BP10-060 | Dexter Adjuster |
| BP10-220 | Adjuster Dust Plug |

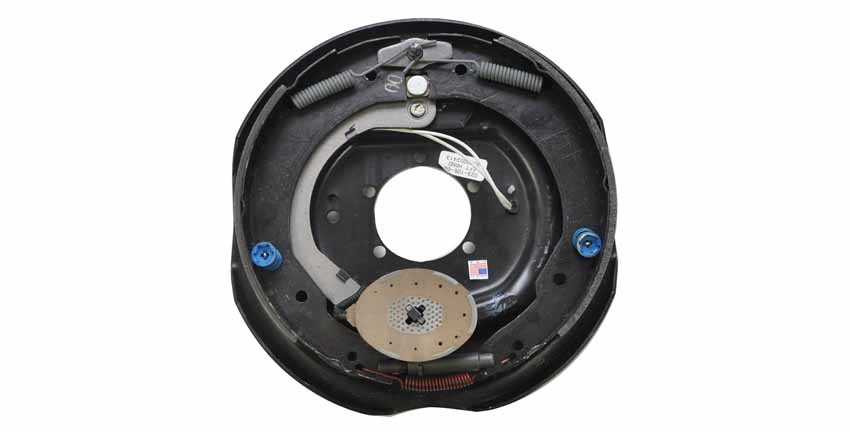

Dexter Complete Electric – 12”x 2”
| PART NUMBER | DESCRIPTION |
|---|---|
023-105-00 | LH Brake 6000lbs Complete Assembly |
| 023-106-00 | RH Brake 6000lbs Complete Assembly |
023-180-00 | LH Brake 7000lbs Complete Assembly |
| 023-181-00 | RH Brake 7000lbs Complete Assembly |
REPLACEMENT PARTS
| PART NUMBER | DESCRIPTION |
|---|---|
BP01-185 | Dexter Magnet Kit 6000lbs w/Protective Sleeve |
| BP07-105 | Shoe Return Spring, Dual Return, Pkg of 2 |
BP01-180 | Magnet Kit 6000lbs Plain |
| BP08-070 | Adjuster Spring |
BP10-060 | Dexter Adjuster |
| BP01-225 | Dexter Magnet Kit 7000lbs w/Protective Sleeve |
BP10-220 | Adjuster Dust Plug |
| BP02-230 | LH Actuating Arm |
BP02-240 | RH Actuating Arm |
| BP04-150 | Shoe And Lining Kit One Wheel 6000lbs |
BP04-180 | Shoe And Lining Kit One Wheel 7000lbs |
| BP06-090 | Shoe Hold Down Springs |
BP07-150 | Shoe Return Spring, Single Return |
| BP19-001 | Magnet Retainer Clip Pkg of 4 |
Axletek Complete Electric – 12”x 2”
| PART NUMBER | DESCRIPTION |
|---|---|
AXLB12E-21 | LH Brake 6/7000lbs Complete Assembly |
| AXLB12E-22 | RH Brake 6/7000lbs Complete Assembly |
REPLACEMENT PARTS
PART NUMBER | DESCRIPTION |
|---|---|
BP01-185 | Dexter Magnet Kit 6000Lbs w/Protective Sleeve |
| BP07-105 | Shoe Return Spring, Dual Return, Pkg of 2 |
BP01-180 | Magnet Kit 6000lbs Plain |
| BP08-070 | Adjuster Spring |
BP10-060 | Dexter Adjuster |
| BP01-225 | Dexter Magnet Kit 7000lbs w/Protective Sleeve |
BP10-220 | Adjuster Dust Plug |
| BP02-230 | LH Actuating Arm |
BP02-240 | RH Actuating Arm |
| BP04-150 | Shoe And Lining Kit One Wheel 6000lbs |
BP04-180 | Shoe And Lining Kit One Wheel 7000lbs |
| BP06-090 | Shoe Hold Down Springs |
BP07-150 | Shoe Return Spring, Single Return |
| BP19-001 | Magnet Retainer Clip Pkg of 4 |

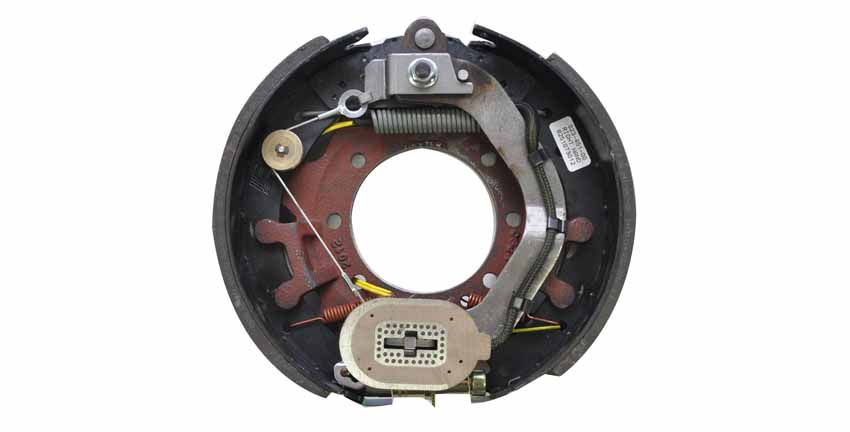

Dexter Complete Electric 12-1/4”x 3-3/8”
| PART NUMBER | DESCRIPTION |
|---|---|
23-450 | LH Brake 9/10,000lbs GD Complete Assembly |
| 23-451 | RH Brake 9/10,000lbs GD Complete Assembly |
REPLACEMENT PARTS
| PART NUMBER | DESCRIPTION |
|---|---|
71-455-2 | RH Arm/Shoe Retainer |
| BP01-301 | Magnet Kit 10,000lbs New Style Oval |
BP02-327 | LH Actuating Arm for Forward Adjust Brakes |
| BP02-328 | RH Actuating Arm for Forward Adjust Brakes |
BP04-245 | LH Shoe and Lining Kit One Wheel |
| BP04-255 | RH Shoe and Lining Kit One Wheel |
BP07-190 | Shoe Return Spring Kit One Wheel |
| BP07-195 | Shoe Centering Spring |
BP08-155 | Adjuster Spring |
| BP10-136 | LH Adjuster and Lever |
BP10-146 | RH Adjuster and Lever |
| BP13-022 | Adjuster Cable |
BP15-085 | Metal Brake Dust Shield for Dexter |
| BP19-005 | Magnet Retainer Clip Pkg of 4 |
71-455-1 | LH Arm/Shoe Retainer |

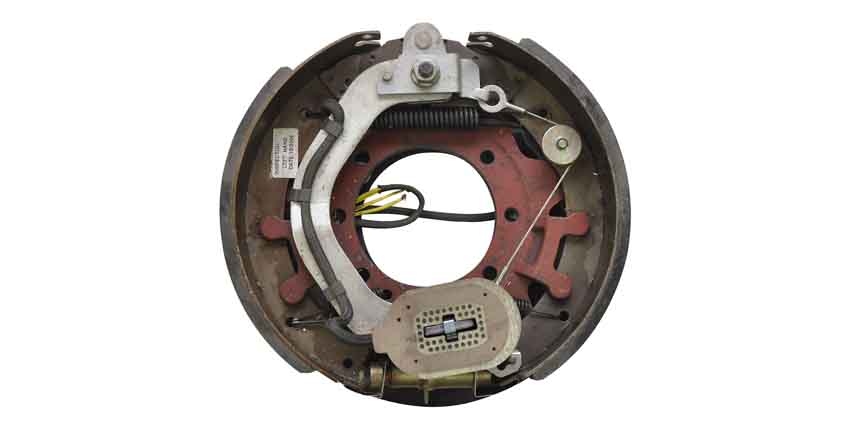

Axletek Complete Electric – 12-1/4” x 3-3/8”
| PART NUMBER | DESCRIPTION |
|---|---|
AXL1210E01 | LH Brake 10,000lbs GD Complete Assembly |
| AXL1210E02 | RH Brake 10,000lbs GD Complete Assembly |
REPLACEMENT PARTS
| PART NUMBER | DESCRIPTION |
|---|---|
71-455-2 | RH Arm/Shoe Retainer |
| BP01-301 | Magnet Kit 10,000lbs New Style Oval |
BP02-327 | LH Actuating Arm for Forward Adjust Brakes |
| BP02-328 | RH Actuating Arm for Forward Adjust Brakes |
BP04-245 | LH Shoe and Lining Kit One Wheel |
| BP04-255 | RH Shoe and Lining Kit One Wheel |
BP07-190 | Shoe Return Spring Kit One Wheel |
| BP07-195 | Shoe Centering Spring |
BP08-155 | Adjuster Spring |
| BP10-136 | LH Adjuster and Lever |
BP10-146 | RH Adjuster and Lever |
| BP13-022 | Adjuster Cable |
BP15-085 | Metal Brake Dust Shield for Dexter |
| BP19-005 | Magnet Retainer Clip Pkg of 4 |
71-455-1 | LH Arm/Shoe Retainer |

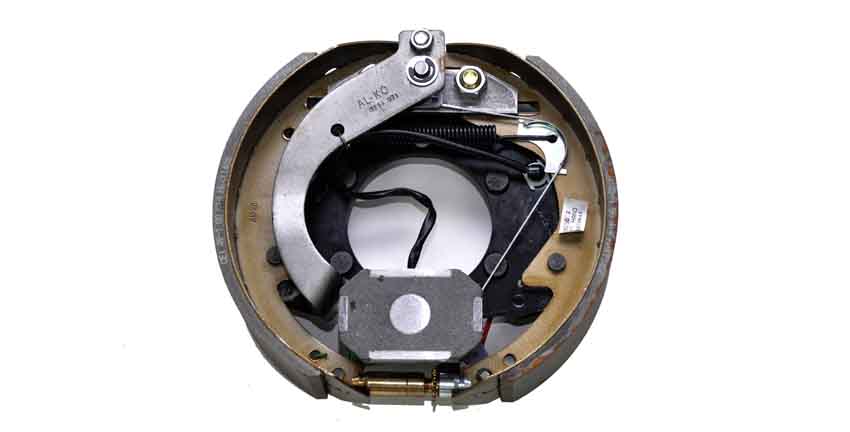

AL-KO Complete Electric – 12-1/4”x 3-1/2”
PART NUMBER | DESCRIPTION |
|---|---|
K568255-2 | LH Brake 10,000lbs Complete Assembly GD |
| K568255-1 | RH Brake 10,000lbs Complete Assembly GD |
REPLACEMENT PARTS
| PART NUMBER | DESCRIPTION |
|---|---|
| 1531044 | Metal Dust Shield 2 per Brake |
568252 | Magnet Kit 8000lbs-16,000lbs |
| 568236 | RH Lever Assembly |
568237 | LH Lever Assembly |
| 568272 | Adjusting Socket 9000lbs-12,000lbs AL-KO Brakes |
568256 | RH Adjuster Screw Assembly 8000lbs-16,000lbs |
| 568257 | LH Adjuster Screw Assembly 8000lbs-16,000lbs |
1531074 | RH Auto Adjust Lever |
| 1531075 | LH Auto Adjust Lever |
568245 | Adjuster Cable Assembly |
| K568251 | Shoe and Lining Kit |
568239 | Self-Adjuster Spring |

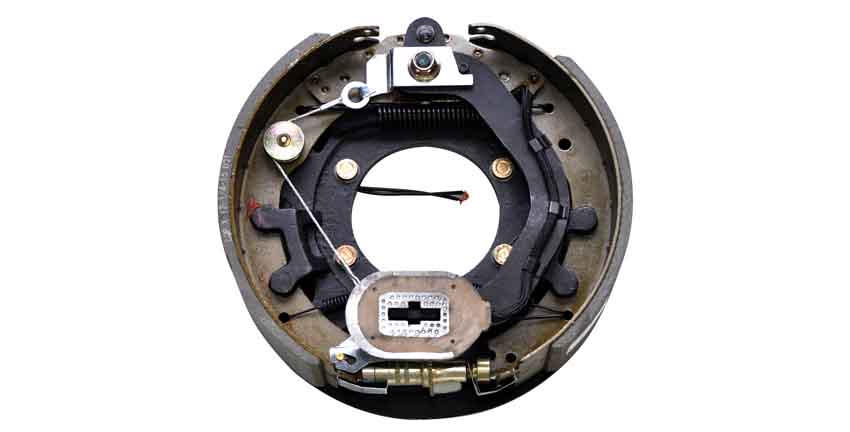

Quality Complete Electric – 12-1/4” x 3-1/2”
PART NUMBER | DESCRIPTION |
|---|---|
12-1241-Q-CH-A | RH Brake 10,000lbs Complete Assembly GD |
| 12-1240-Q-CH-A | LH Brake 10,000lbs Complete Assembly GD |
REPLACEMENT PARTS
PART NUMBER | DESCRIPTION |
|---|---|
| BP01-301 | Magnet Kit 10,000lbs Quality |
BP02-325 | RH Actuating Arm for 10,000lbs Brakes |
| BP02-315 | LH Actuating Arm for 10,000lbs Brakes |
71-499-ST | LH Shoe and Lining |
| 71-498-ST | RH Shoe and Lining |
BP10-136 | RH Adjuster and Lever |
| BP10-136 | LH Adjuster and Lever |
BP13-020 | Adjuster Cable |
| BP08-155 | Adjuster Spring |
BP07-225 | Shoe Return Spring |
Dexter Complete Electric – 12-1/4”x 4” & 12-1/4”x 5”
PART NUMBER | DESCRIPTION |
|---|---|
| 23-438 | LH Brake 10,000lbs Heavy Duty |
23-439 | RH Brake 10,000lbs Heavy Duty |
| 23-446 | LH Brake 15,000lbs |
23-447 | RH Brake 15,000lbs |
REPLACEMENT PARTS FITS 4″ BRAKES
PART NUMBER | DESCRIPTION |
|---|---|
| 71-455-2 | RH Shoe/Arm Retainer |
71-455-1 | LH Shoe/Arm Retainer |
| BP01-301 | Magnet Kit 10 000lbs New Style Oval |
BP02-327 | LH Actuating Arm for Forward Adjust Brakes |
| BP02-328 | RH Actuating Arm for Forward Adjust Brakes |
BP04-325 | LH Shoe and Lining One Wheel |
| BP04-335 | RH Shoe and Lining One Wheel |
BP07-190 | Shoe Return Spring Kit One Wheel |
| BP07-195 | Shoe Centering Spring |
BP08-155 | Adjuster Spring |
| BP10-136 | LH Adjuster and Lever |
BP10-146 | RH Adjuster and Lever |
| BP13-022 | Adjuster Cable |
BP15-150 | Metal Brake Dust Shield for Dexter |
| BP19-005 | Magnet Retainer Clip |
REPLACEMENT PARTS FITS 5″ BRAKES
| PART NUMBER | DESCRIPTION |
|---|---|
47-123-36 | LH Actuating Arm for 12,000lbs and 15,000lbs Brakes |
| 47-123-35 | RH Actuating Arm 12,000lbs And 15,000lbs |
BP01-306 | Magnet Kit 12,000lbs New Style Oval |
| BP01-311 | Magnet Kit 15,000lbs New Style Oval |
BP04-365 | LH Shoe and Lining One Wheel |
| BP04-375 | RH Shoe and Lining One Wheel |
BP07-190 | Shoe Return Spring Kit One Wheel |
| BP07-195 | Shoe Centering Spring |
BP08-155 | Adjuster Spring |
| BP10-136 | LH Adjuster and Lever |
BP10-146 | RH Adjuster and Lever |
| BP13-022 | Adjuster Cable |
BP19-005 | Magnet Retainer Clip |
| 71-455-2 | RH Shoe/Arm Retainer |
71-455-1 | LH Shoe/Arm Retainer |
| 36-115-23 | Metal Dust Cover 7 Bolt Dexter |
77-17 | Adjustable Slide Bar |

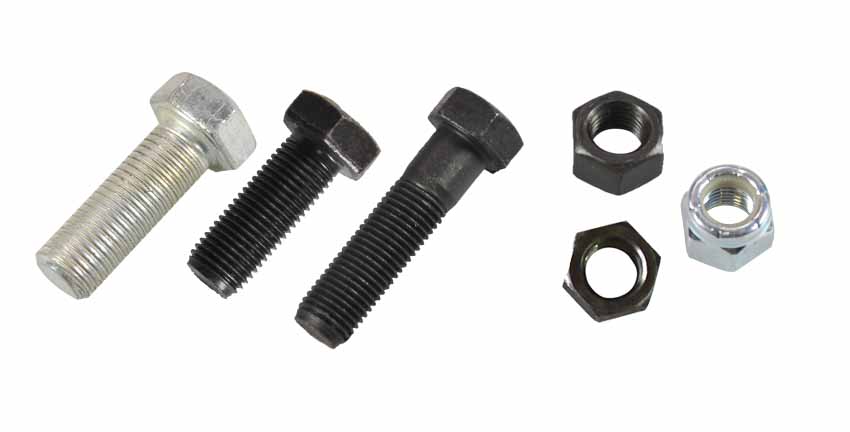

Brake Mounting Hardware
| PART NUMBER | DESCRIPTION | LENGTH | DIAMETER |
|---|---|---|---|
7-75 | Brake Mounting Bolt For 10” X 2 ¼” Electric Brakes | 1 ¼” | 7/16″ |
| 7-5 | Brake Mounting Bolt For 12” X 2” Electric Brakes | 1″ | 3/8″ |
| RT3114 | Brake Mounting Bolt For 12” X 2” Electric Brakes | 1″ | 3/8″ |
| 7-97 | Brake Mounting Bolt For 8k & 9k Electric Brakes | 1 ½” | ½” |
| 7-116 | Brake Mounting Bolt For Dexter 9k & 10k Electric Brakes With 7-Bolt Flange | 1 ¾” | 7/16” |
| 6-17 | Brake Mounting Locknut For 10” X 2 ¼” Electric Brakes, Nylon, Fine-Thread | N/A | 7/16″ |
| RT3122 | Brake Mounting Locknut For 12” X 2” Electric Brakes, Fine-Thread | N/A | 3/8″ |
| 820-1 | Brake Mounting Locknut For 12” X 2” Electric Brakes, Nylon, Fine-Thread | N/A | 3/8″ |
