BEARINGS & RACES

HOME  >  TRAILER PARTS & ACCESSORIES  >  AXLE COMPONENTS  >  BEARINGS & RACES

Click on the PART NUMBER to add parts to the “Your Saved Parts” to request a quote.

  Disclaimer: Images may not always be accurate to the part #

 If you do not find what you are looking for, contact us.

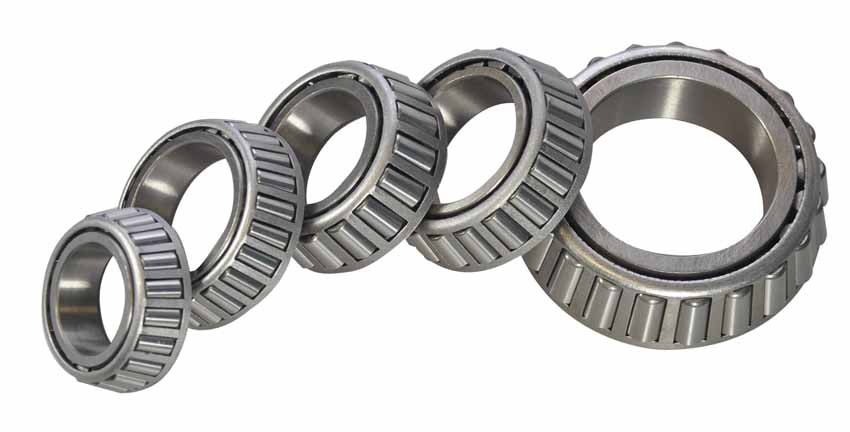

Bearings

Bearings

PART NUMBERDESCRIPTIONI.D.CORRESPONDING RACE
LM11949Outer For AH15450E Agricultural Hubs0.750LM11910
1779Outer For 22834 Hub0.9381729
L44643Inner/Outer For BT81.000L44610
L44649Inner/Outer For #84 Spindle1.063L44610
15123OuterFor 42655, 42656, 8-174-51.25015245
LM67048Outer For 8-201-5, 8-213-51.250LM67010
14125AOuter For 42865, 42866, 8-219-4, 8-231-91.25014276
02475Outer For 8-231-8, 8-218-9, 8-187-71.25002420
2585Outer For 8-232-51.3132520
LM48548Inner For AH25555F Agricultural Hub1.375LM48510
L68149Inner For #84 Spindle1.378L68111
2788Inner For 22834 Hub1.5002729
LM29749For AH30660F Agricultural Hubs1.500LM29710
LM501349Outer For AH60880F, Inner For AH35660F1.625LM501310
25580#42, 8K, 9K Inner (Pre 10/89), Outer For #991.75025520
LM603049For AH45880F Agricultural Hub1.781
JM205149For 090814 Hayes 10K1.969JM205110
28580Inner For All #99 Spindles2.00028521
LM506849For AH60880F Agricultural Hub2.165
387AOuter For 8-214-5, Inner For 8-288-32.250382A
28682Outer For 8-216-5, 8-214-8, 8-217-5, 8-727-52.25028622
JM511946For 090814 Hayes 10K2.559JM511910
395SInner For 8-214-52.625394A
3984Inner For 8-216-5, 8-214-8, 8-217-5, 8-272-52.6253920
HM212049Outer For 20K-25K Axles2.625
HM218248Inner For 20K-25K Axles3.542
31-72-335MM Cartridge Style, NEV-R-LUBE35MM
31-73-342MM Cartridge Style, NEV-R-LUBE42MM
31-71-350MM Cartridge Style, NEV-R-LUBE50MM

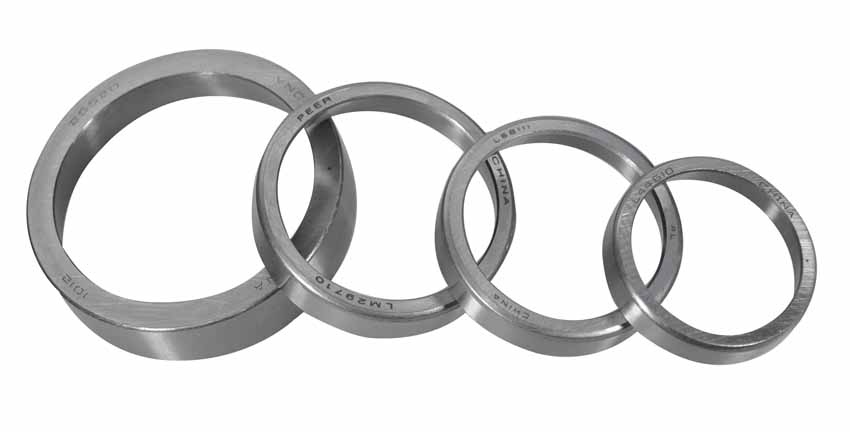

Races

Races

PART NUMBERDESCRIPTIONO.D.
LM11910Fits/For LM11949 Bearings1.781
L44610Fits/For L44643, L44649 Bearings1.980
1729Fits/For 1779 Bearings2.240
LM67010Fits/For LM67048 Bearings2.328
L68111Fits/For L68149 Bearings2.361
15245Fits/For 15123 Bearings2.441
LM48510Fits/For LM48548 Bearings2.563
LM29710Fits/For LM29749 Bearings2.563
2520Fits/For 2585 Bearings2.615
02420Fits/For 02475 Bearings2.688
14276Fits/For 14125A Bearings2.717
LM501310Fits/For LM501349 Bearings2.891
2729Fits/For 2788 Bearings3.000
25520Fits/For 25580 Bearings3.265
JM205110Fits/For JM205149 Bearings3.543
28521Fits/For 28580 Bearings3.625
382AFits/For 387A Bearings3.813
28622Fits/For 28682 Bearings3.844
394AFits/For 395S Bearings4.331
JM511910Fits/For JM511946 Bearings4.331
3920Fits/For 3984 Bearings4.438

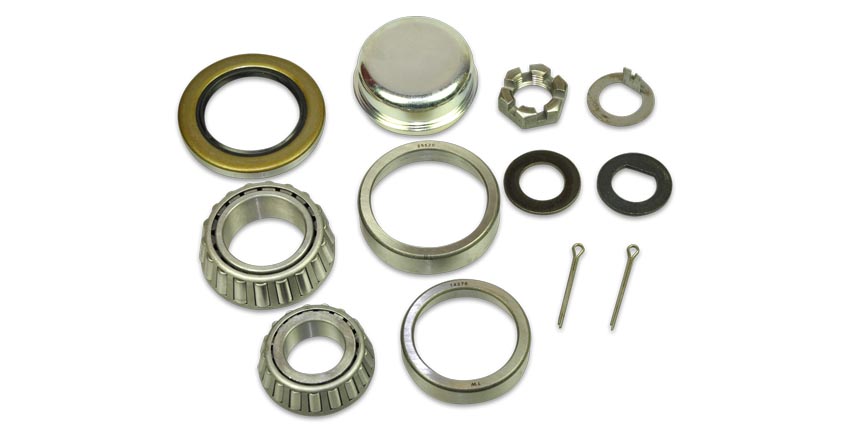

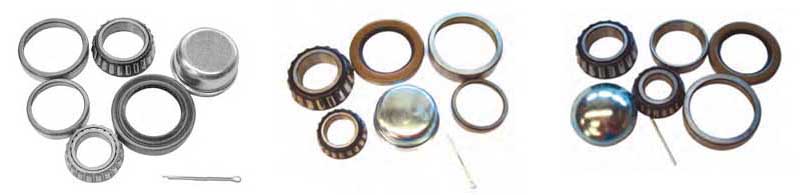

Bearing Kits

Bearing Kits



Bearing kits contain everything you need to replace the individual components found on trailer hubs (you need one kit per hub). Each bearing and race has an identification number engraved on it; you can compare these numbers to the ones on the following tables to quickly and easily find a replacement bearing and/or race.



PART NUMBERDESCRIPTIONKIT CONTENTS
BL1302Bearing Kit, Fits Most 3,500lb Axles, For #84 Spindle

  • (1) L44649 Outer Bearing
  • (1) L68149 Inner Bearing
  • (1) 15245 Outer Race
  • (1) L68111 Inner Race
  • (1) RT4012 Tang Spindle Washer
  • (1) RT4018 Plain Spindle Washer
  • (1) RT4016 “D” Spindle Washer
  • (1) RT4054 Seal
  • (1) RT4014 Castle Spindle Nut
  • (1) RT4021 Cap
  • (1) RT4009 Cotter Pin
BL1303Bearing Kit, Fits Most 5,200lb & 6,000lb Axles, For #42 Spindle
  • (1) 15123 Outer Bearing
  • (1) 25580 Inner Bearing
  • (1) L44610 Outer Race
  • (1) 25520 Inner Race
  • (1) RT4012 Tang Spindle Washer
  • (1) RT4018 Plain Spindle Washer
  • (1) RT4016 “D” Spindle Washer
  • (1) RT4058 Seal
  • (1) RT4014 Castle Spindle Nut
  • (1) RT4022 Cap
  • (1) RT4009 Cotter Pin
BL1304Bearing Kit, Fits Most 7,000lb Axles, For #42 Spindle
  • (1) 14125A Outer Bearing
  • (1) 25580 Inner Bearing
  • (1) 14276 Outer Race
  • (1) 25520 Inner Race
  • (1) RT4012 Tang Spindle Washer
  • (1) RT4018 Plain Spindle Washer
  • (1) RT4016 “D” Spindle Washer
  • (1) RT4058 Seal
  • (1) RT4014 Castle Spindle Nut
  • (1) RT4024 Cap
  • (1) RT4009 Cotter Pin
