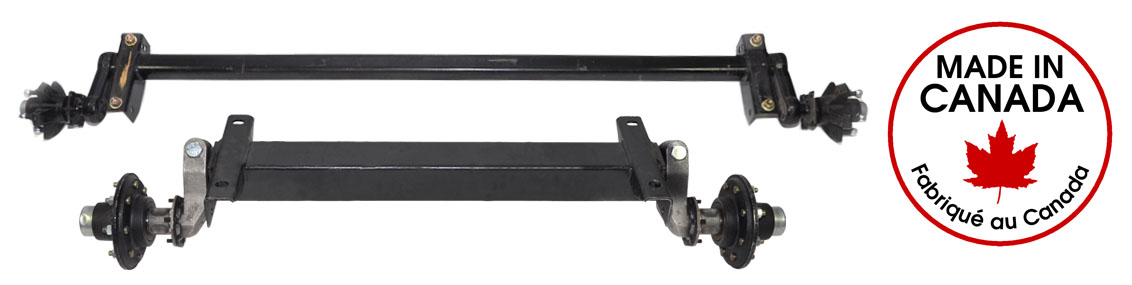

RUBBER TORSION AXLES

HOME  >  TRAILER PARTS & ACCESSORIES  >  AXLE ASSEMBLIES  >  RUBBER TORSION AXLES

  To Request for price of an axle, click this Request for Axle Quote

#8 600-900lb Torflex Axles

For information on selecting torflex axles, click here. For specific ordering information, please contact us.

Suspension:

  • Features an independent suspension cushioned with rubber, providing a smooth, quiet ride with no transfer of road shock from one wheel to the other. (No springs required)

Bolt Pattern Options:

  • 4 on 4″ Idler
  • 5 on 4 1/2″ Idler

5 Bolt Available with:

  • 5 1/2″ Hub Flange – For 8″ – 12″ Wheels
  • 6 1/2″ Hub Flange – For 12″ – 15″ Wheels
Brake Options:

  • Available as Idler Only.

Spindles:

  • Standard BTR 1 1/16″
  • L44649 Inner/Outer Bearings

Tires and Rims

Other Replacement Parts:

  • Axle Beams



#8 Torflex Axle Assemblies ( 4 on 4″ )
PART# 4 on 4″Axle Type
8TF9-440IIdler
8TF9-440I-EZIdler w/EZ Lube
#8 Torflex Axle Assemblies ( 5 on 4 1/2″ )
PART# 5 on 4 1/2″Axle Type
8TF9-545IIdler
8TF9-545I-EZIdler w/EZ Lube
#8 Torflex Mounting Kit
Part No.Ref. No.Type
AP165046910Weld on Mounting Kit for #8 Torflex axles
Full Load Dimensions:

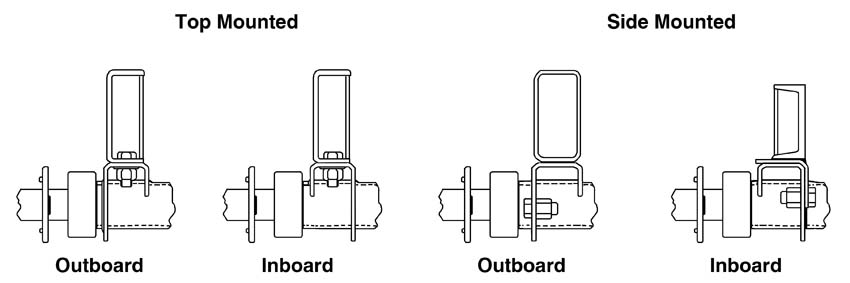

Dimensions are for low profile, top mount only. Side mount is .25″ higher. Allow 3″ bump clearance from full load.

rubber torsion axles

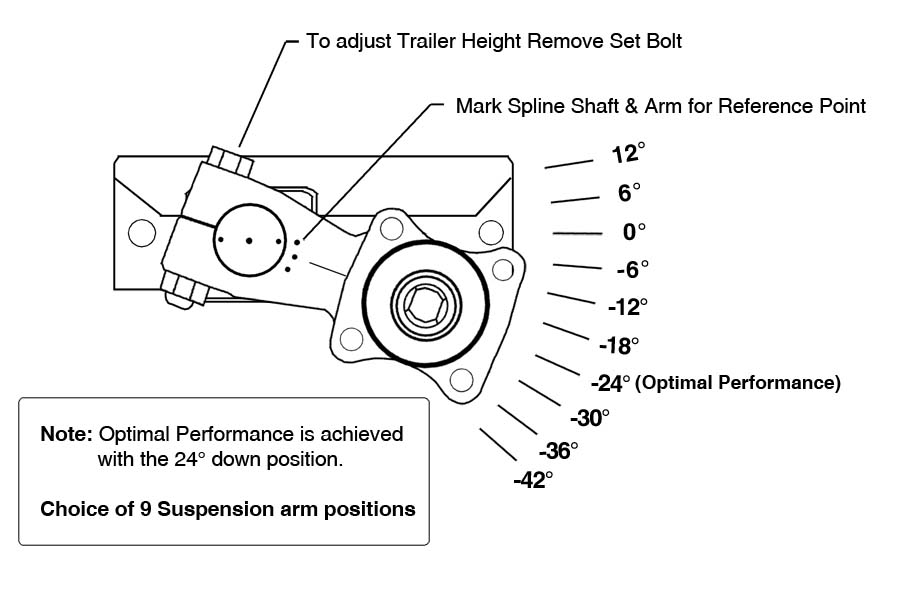

#8 Torflex Start Angle
Tire
45 Down
22.5 Down
10 Down
0
10 up
22.5
H
B
C
H
B
C
H
B
C
H
B
C
H
B
C
H
B
C
D
E
ST175/80R132.513.79.51.012.2110.111.311.9-0.510.712.5-1.110.113.1-1.89.413.811.212.0
4.80-82.510.46.31.08.97.80.18.08.7-0.57.49.3-1.16.89.9-1.86.110.67.98.8
4.80-122.512.08.31.010.59.80.19.610.7-0.59.011.6-1.18.411.9-1.87.712.69.510.8
20.5X8.0-102.512.28.31.010.79.80.19.810.7-0.59.211.3-1.18.611.9-1.87.912.69.710.8

#8 Torflex Start Angle
TireHBC
45 Down
ST175/80R132.513.79.5
4.80-82.510.46.3
4.80-122.512.08.3
20.5X8.0-102.512.28.3
22.5 Down
ST175/80R131.012.211
4.80-81.08.97.8
4.80-121.010.59.8
20.5X8.0-101.010.79.8
10 Down
ST175/80R130.111.311.9
4.80-80.18.08.7
4.80-120.19.610.7
20.5X8.0-100.19.810.7
0 Down
ST175/80R13-0.510.712.5
4.80-8-0.57.49.3
4.80-12-0.59.011.6
20.5X8.0-10-0.59.211.3
10 Up
ST175/80R13-1.110.113.1
4.80-8-1.16.89.9
4.80-12-1.18.411.9
20.5X8.0-10-1.18.611.9
22.5
ST175/80R13-1.89.413.8
4.80-8-1.86.110.6
4.80-12-1.87.712.6
20.5X8.0-10-1.87.912.6
ST175/80R1311.212.0
4.80-87.98.8
4.80-129.510.8
20.5X8.0-109.710.8
#8 Torflex Articulations Dimensions:

Allow 3″ Bump Clearance from full load.
Positive numbers indicate spindle is below the top of the bracket, negative numbers are above.

#8 Torflex Articulation Dimensions

#9 1,000-2,200lb Torflex Axles

For information on selecting torflex axles, click here. For specific ordering information, please contact us.

Suspension:

  • Features an independent suspension cushioned with rubber, providing a smooth, quiet ride with no transfer of road shock from one wheel to the other. (No springs required)

Bolt Pattern Options:

  • 4 on 4″ Idler
  • 5 on 4 1/2″ Idler or Hub & Drum

5 Bolt Available with:

  • 5 1/2″ Hub Flange – For 8″ – 12″ Wheels
  • 6 1/2″ Hub Flange – For 12″ – 15″ Wheels
Brake Options:

  • 7″ x 1 1/4″ Electric
  • 7″ x 1 3/4″ Hydraulic Uni-Servo

Spindles:

  • Standard BTR 1 1/16″
  • L44649 Inner/Outer Bearings

Lubrication:

  • Grease
  • E-Z Lube

Tires and Rims

Other Replacement Parts:

  • Axle Beams
#9 Torflex Axle Assemblies (4 on 4″)
PART# 4 on 4″Axle Type
9TF20-440IIdler
9TF20-440I-EZIdler w/E-Z Lube
9TF20-440EElectric
9TF20-440E-EZElectric w/E-Z Lube
9TF20-440HSingle Servo Hydraulic
9TF20-440H-EZHydraulic w/E-Z Lube
#9 Torflex Axle Assemblies (5 on 4 1/2″)
PART# 5 on 4 1/2″Axle Type
9TF20-545IIdler
9TF20-545I-EZIdler w/E-Z Lube
9TF20-545EElectric
9TF20-545E-EZElectric w/E-Z Lube
9TF20-545HSingle Servo Hydraulic
9TF20-545H-EZHydraulic w/E-Z Lube
#9 Torflex Mounting Kit
Part No.Ref. No.Type
AP165046910Weld on Mounting Kit for #9 Torflex axles
Full Load Dimensions:

Dimensions are for low profile, top mount only. Side mount is .25″ higher. Allow 3″ bump clearance from full load.

#9 Torflex Start Angle
Tire
45 Down
22.5 Down
10 Down
0
10 up
22.5
H
B
C
H
B
C
H
B
C
H
B
C
H
B
C
H
B
C
D
E
ST175/80R133.514.78.51.212.410.8-0.111.112.1-1.110.113.1-3.08.215.0-1.89.413.811.212.0
4.80-83.511.45.31.29.17.6-0.17.88.9-1.16.89.9-3.04.911.8-1.86.110.67.98.8
4.80-123.513.07.61.210.710.9-0.19.410.9-1.18.411.9-3.06.513.8-1.87.712.69.510.8
20.5X8.0-103.513.27.31.210.910.9-0.19.610.9-1.18.611.9-3.06.713.8-1.87.912.69.710.8

#9 Torflex Start Angle
TireHBC
45 Down
ST175/80R133.514.78.5
4.80-83.511.45.3
4.80-123.513.07.6
20.5X8.0-103.513.27.3
22.5 Down
ST175/80R131.212.410.8
4.80-81.29.17.6
4.80-121.210.710.9
20.5X8.0-101.210.910.9
10 Down
ST175/80R13-0.111.112.1
4.80-8-0.17.88.9
4.80-12-0.19.410.9
20.5X8.0-10-0.19.610.9
0 Down
ST175/80R13-1.110.113.1
4.80-8-1.16.89.9
4.80-12-1.18.411.9
20.5X8.0-10-1.18.611.9
10 Up
ST175/80R13-3.08.215.0
4.80-8-3.04.911.8
4.80-12-3.06.513.8
20.5X8.0-10-3.06.713.8
22.5
ST175/80R13-1.89.413.8
4.80-8-1.86.110.6
4.80-12-1.87.712.6
20.5X8.0-10-1.87.912.6
ST175/80R1311.212.0
4.80-87.98.8
4.80-129.510.8
20.5X8.0-109.710.8
#9 Torflex Articulation Dimensions:

Allow 3″ Bump Clearance from full load.
Positive numbers indicate spindle is below the top of the bracket, negative numbers are above.

#9 Torflex Articulation Dimensions

#10 2,300-3,500lb Torflex Axles

For information on selecting torflex axles, click here. For specific ordering information, please contact us.

Suspension:

  • Features an independent suspension cushioned with rubber, providing a smooth, quiet ride with no transfer of road shock from one wheel to the other. (No springs required)

Bolt Pattern Options:

  • 5 on 4 1/2″, 4 3/4″, 5 & 5 1/2″ Idler or Hub & Drum
  • 6 on 5 1/2″ Idler or Hub & Drum

5 Bolt Available with:

  • 10″ x 2 1/4″ – Electric
  • 10″ x 2 1/4″ Hydraulic (Uni-Servo & Freeback)
Spindles:

  • TTH (#84 Spindle)
  • L68149 Inner, L44649 Outer Bearings

Lubrication:

  • Grease
  • E-Z Lube

Tires and Rims

Other Replacement Parts:

  • Axle Beams
#10 Torflex Axle Assemblies (5 on 4 1/2″)
PART# 5 on 4 1/2″Axle Type
10TF35-545IIdler
10TF35-545I-EZIdler w/E-Z Lube
10TF35-545EElectric
10TF35-545E-EZElectric w/E-Z Lube
N/AElec. w/Nev-R Lube
10TF35-545HSingle Servo Hydraulic
10TF35-545H-EZHydraulic w/E-Z Lube
N/AHydraulic w/Nev-R Lube
10TF35-545HFBHydraulic Freeback
10TF35-545HFB-EZHydraulic Freeback w/E-Z Lube
N/AHydraulic Freeback w/Nev-R Lube



#10 Torflex Axle Assemblies (5 on 4 3/4″)
PART# 5 on 4 3/4″Axle Type
10TF35-5475IIdler
10TF35-5475I-EZIdler w/E-Z Lube
10TF35-5475EElectric
10TF35-5475E-EZElectric w/E-Z Lube
N/AElec. w/Nev-R Lube
10TF35-5475HSingle Servo Hydraulic
10TF35-5475H-EZHydraulic w/E-Z Lube
N/AHydraulic w/Nev-R Lube
10TF35-5475HFBHydraulic Freeback
10TF35-5475HFB-EZHydraulic Freeback w/E-Z Lube
N/AHydraulic Freeback w/Nev-R Lube
#10 Torflex Axle Assemblies ( 5 on 5″)
PART# 5 on 5″Axle Type
10TF35-550IIdler
10TF35-550I-EZIdler w/E-Z Lube
10TF35-550EElectric
10TF35-550E-EZElectric w/E-Z Lube
N/AElec. w/Nev-R Lube
10TF35-550HSingle Servo Hydraulic
10TF35-550H-EZHydraulic w/E-Z Lube
N/AHydraulic w/Nev-R Lube
10TF35-550HFBHydraulic Freeback
10TF35-550HFB-EZHydraulic Freeback w/E-Z Lube
N/AHydraulic Freeback w/Nev-R Lube
#10 Torflex Axle Assemblies ( 5 on 5 1/2″)
PART# 5 on 5 1/2″Axle Type
10TF35-555IIdler
10TF35-555I-EZIdler w/E-Z Lube
10TF35-555EElectric
10TF35-555E-EZElectric w/E-Z Lube
N/AElec. w/Nev-R Lube
10TF35-555HSingle Servo Hydraulic
10TF35-555H-EZHydraulic w/E-Z Lube
N/AHydraulic w/Nev-R Lube
10TF35-555HFBHydraulic Freeback
10TF35-555HFB-EZHydraulic Freeback w/E-Z Lube
N/AHydraulic Freeback w/Nev-R Lube
#10 Torflex Axle Assemblies ( 6 on 5 1/2″)
PART# 6 on 5 1/2″Axle Type
10TF35-655IIdler
10TF35-655I-EZIdler w/E-Z Lube
10TF35-655EElectric
10TF35-655E-EZElectric w/E-Z Lube
10TF35-655E-NLElec. w/Nev-R Lube
10TF35-655HSingle Servo Hydraulic
10TF35-655H-EZHydraulic w/E-Z Lube
10TF35-655H-NLHydraulic w/Nev-R Lube
10TF35-655HFBHydraulic Freeback
10TF35-655HFB-EZHydraulic Freeback w/E-Z Lube
10TF35-655HFB-NLHydraulic Freeback w/Nev-R Lube



#10 Torflex Mounting Kit
Part No.Ref. No.Type
AP166056310Weld on Mounting Kit for #10 Torflex axles
Full Load Dimensions:
Dimensions are for low profile, top mount only. Side mount is .25″ higher. Allow 3″ bump clearance from full load.
#10 Torflex Start Angle
Tire
45 Down
22.5 Down
10 Down
0
10 up
22.5
H
B
C
H
B
C
H
B
C
H
B
C
H
B
C
H
B
C
D
E
ST175/80R133.815.08.21.512.710.8.211.412.8-.810.412.8-1.79.513.7-2.88.414.811.212.0
ST205/75R143.815.99.31.513.611.6.212.313.9-.811.313.9-1.710.414.8-2.89.315.912.113.1
ST225/75R153.816.810.61.514.512.9.213.215.2-.812.215.2-1.711.316.1-2.810.217.213.014.4

H = Center Line of spindle to top of bracket, B = Top of bracket to ground, C = Top of bracket to top of tire,
D = Center Line of spindle to ground, E = Center line of spindle to top of tire. * See Diagram above, #8 Torflex

#10 Torflex Start Angle
TireHBC
45 Down
ST175/80R133.815.08.2
ST205/75R143.815.99.3
ST225/75R153.816.810.6
22.5 Down
ST175/80R131.512.710.8
ST205/75R141.513.611.6
ST225/75R151.514.512.9
10 Down
ST175/80R13.211.412.8
ST205/75R14.212.313.9
ST225/75R15.213.215.2
0 Down
ST175/80R13-.810.412.8
ST205/75R14-.811.313.9
ST225/75R15-.812.215.2
10 Up
ST175/80R13-1.79.513.7
ST205/75R14-1.710.414.8
ST225/75R15-1.711.316.1
22.5
ST175/80R13-2.88.414.8
ST205/75R14-2.89.315.9
ST225/75R15-2.810.217.2
ST175/80R1311.212.0
ST205/75R1412.113.1
ST225/75R1513.014.4
#10 Torflex Articulation Dimensions
Allow 3″ Bump Clearance from full load
Positive numbers indicate spindle is below the top of the bracket, negative numbers are above.
#10 Torflex Articulation Dimensions

#11 4,000-6,000lb Torflex Axles

For information on selecting torflex axles, click here. For specific ordering information, please contact us.

Suspension:

  • Features an independent suspension cushioned with rubber, providing a smooth, quiet ride with no transfer of road shock from one wheel to the other. (No springs required)

Bolt Pattern Options:

  • 6 on 5 1/2″ Idler or Hub & Drum w/ 15123, or Hub & Drum w/ LM67048
  • 8 on 6 1/2″ Idler or Hub & Drum
  • UTG 5-Spoke for 14.5″ Wheels

Brake Options:

With or Without Parking Feature

  • 12″ x 2″ – Electric
  • 12″ x 2″ Hydraulic (Uni-Servo,Freebacking and Duo-Servo)
Spindles:

  • TTA (#42 Spindle w/ 2 1/4″ Seal Journal)
  • 25580 Inner, LM67048, 15123 or 14125A Outer Bearings

Lubrication:

  • Grease
  • E-Z Lube
  • Nev-R-Lube
  • Oil Bath

Tires and Rims

Other Replacement Parts:

  • Axle Beams
#11 Torflex Axle Assemblies ( 6 on 5 1/2″)
PART# 6 on 5 1/2″Axle Type
11TF60-655IIdler
11TF60-655I-EZIdler w/E-Z Lube
N/AIdler w/Oil Bath
11TF60-655EElectric
11TF60-655E-EZElectric w/E-Z Lube
11TF60-655E-NLElectric w/Nev-R Lube
N/AElectric w/Oil Bath
11TF60-655HSingle Servo (SS) Hydraulic
11TF60-655H-EZSS Hydraulic w/E-Z Lube
11TF60-655H-NLSS Hydraulic w/Nev-R Lube
N/ASS Hydraulic w/Oil Bath
11TF60-655HFBSingle Servo Hydraulic (SSH) Freeback
11TF60-655HFBEZSSH Freeback w/EZ lube
11TF60-655HFBNLSSH Freeback w/Nev-R Lube
11TF60-655N/ASSH Freeback w/Oil Bath
11TF60-655HYDual Servo (DS) Hydraulic
11TF60-655HY-EZDS Hydraulic w/E-Z Lube
11TF60-655HY-NLDS Hydraulic w/Nev-R Lube
N/ADS Hydraulic w/Oil Bath
#11 Torflex Axle Assemblies ( 8 on 6 1/2″)
PART# 8 on 6 1/2″Axle Type
11TF60-865IIdler
11TF60-865I-EZIdler w/E-Z Lube
11TF60-865I-OILIdler w/Oil Bath
11TF60-865EElectric
11TF60-865E-EZElectric w/E-Z Lube
11TF60-865E-NLElectric w/Nev-R Lube
11TF60-865E-OILElectric w/Oil Bath
11TF60-865HSingle Servo (SS) Hydraulic
11TF60-865H-EZSS Hydraulic w/E-Z Lube
11TF60-865H-NLSS Hydraulic w/Nev-R Lube
11TF60-865H-OILSS Hydraulic w/Oil Bath
11TF60-865HFBSingle Servo Hydraulic (SSH) Freeback
11TF60-865HFBEZSSH Freeback w/EZ lube
11TF60-865HFBNLSSH Freeback w/Nev-R Lube
11TF60-865HFBOILSSH Freeback w/Oil Bath
11TF60-865HYDual Servo (DS) Hydraulic
11TF60-865HY-EZDS Hydraulic w/E-Z Lube
11TF60-865HY-NLDS Hydraulic w/Nev-R Lube
11TF60-865HY-OILDS Hydraulic w/Oil Bath
#11 Torflex Axle Assemblies ( UTG 5-Spoke )
Part# UTG 5-SpokeAxle Type
11TF60-UTGIIdler
11TF60-UTGI-EZIdler w/E-Z Lube
11TF60-UTGI-OILIdler w/Oil Bath
11TF60-UTGEElectric
11TF60-UTGE-EZElectric w/E-Z Lube
N/AElectric w/Nev-R Lube
11TF60-UTGE-OILElectric w/Oil Bath
11TF60-UTGHSingle Servo (SS) Hydraulic
11TF60-UTGH-EZSS Hydraulic w/E-Z Lube
N/ASS Hydraulic w/Nev-R Lube
11TF60-UTGH-OILSS Hydraulic w/Oil Bath
11TF60-UTGHFBSingle Servo Hydraulic (SSH) Freeback
11TF60-UTGHFBEZSSH Freeback w/EZ lube
N/ASSH Freeback w/Nev-R Lube
11TF60-UTGHFBOILSSH Freeback w/Oil Bath
11TF60-UTGHYDual Servo (DS) Hydraulic
11TF60-UTGHY-EZDS Hydraulic w/E-Z Lube
N/ADS Hydraulic w/Nev-R Lube
11TF60-UTGHY-OILDS Hydraulic w/Oil Bath
#11 Torflex Mounting Kit
Part No.Ref. No.Type
AP167060190Weld on Mounting Kit for #11 Torflex axles
Full Load Dimensions:
Dimensions are for low profile, top mount only. Side mount is .75″ higher. Side mount is .25″ higher. Allow 3″ bump clearance from full load.
#11 Torflex
#11 Torflex Start Angle
Tire
45 Down
22.5 Down
10 Down
0
10 up
22.5
H
B
C
H
B
C
H
B
C
H
B
C
H
B
C
H
B
C
D
E
ST225/75R154.117.110.31.814.812.6.513.513.9-.512.514.9-1.511.515.9-2.510.516.913.014.4
LT235/85R164.118.411.31.816.113.6.514.814.9-.513.815.9-1.512.816.9-2.511.817.914.315.4
LT225/75R164.117.610.81.815.313.1.514.014.4-.513.015.4-1.512.016.4-2.511.017.413.514.9
8.75R16.5LT4.117.910.71.815.613.0.514.314.3-.513.315.3-1.512.316.3-2.511.317.313.814.8

#11 Torflex Start Angle
TireHBC
45 Down
ST225/75R154.117.110.3
LT235/85R164.118.411.3
LT225/75R164.117.610.8
8.75R16.5LT4.117.910.7
22.5 Down
ST225/75R151.814.812.6
LT235/85R161.816.113.6
LT225/75R161.815.313.1
8.75R16.5LT1.815.613.0
10 Down
ST225/75R15.513.513.9
LT235/85R16.514.814.9
LT225/75R16.514.014.4
8.75R16.5LT.514.314.3
0 Down
ST225/75R15-.512.514.9
LT235/85R16-.513.815.9
LT225/75R16-.513.015.4
8.75R16.5LT-.513.315.3
10 Up
ST225/75R15-1.511.515.9
LT235/85R16-1.512.816.9
LT225/75R16-1.512.016.4
8.75R16.5LT-1.512.316.3
22.5
ST225/75R15-2.510.516.9
LT235/85R16-2.511.817.9
LT225/75R16-2.511.017.4
8.75R16.5LT-2.511.317.3
ST225/75R1513.014.4
LT235/85R1614.315.4
LT225/75R1613.514.9
8.75R16.5LT13.814.8
#11 Torflex Articulation Dimensions:
Allow 3″ Bump Clearance from full load
Positive numbers indicate spindle is below the top of the bracket, negative numbers are above.
#11 Torflex Articulation Dimensions:

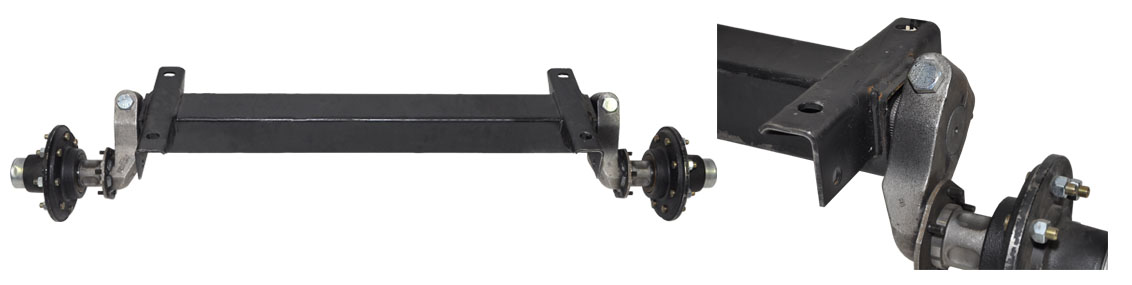

#12 5,500-7,000lb and #12v 7,200lb Torflex Axles

For information on selecting torflex axles, click here. For specific ordering information, please contact us.

Suspension:

  • Features an independent suspension cushioned with rubber, providing a smooth, quiet ride with no transfer of road shock from one wheel to the other. (No springs required)

Bolt Pattern Options:

  • #12 – 8 on 6 1/2″ Idler or Hub & Drum
  • UTG 5-Spoke
  • #12V – 8 on 6 1/2″ ( 9/16″ Studs Standard or Optional 5/8″)

Brake Options:

#12 With or Without Parking Feature

  • 12″ x 2″ – Electric
  • 12″ x 2″ Hydraulic (Uni-Servo,Freebacking and Duo-Servo)
Spindles:

  • #12 UTA (#42 Spindle w/ 2 1/4″ Seal Journal)
  • 25580 Inner, LM67048, 151123 or 141125A Outer Bearings

Lubrication:

#12

  • Grease
  • E-Z Lube
  • Nev-R-Lube
  • Oil Bath

#12V

  • Grease
  • E-Z Lube
  • Oil Bath

Tires and Rims

Other Replacement Parts:

  • Axle Beams
#12 Torflex Axle Assemblies – 7,000lb ( 8 on 6 1/2″ )
PART# 8 on 6 1/2″Axle Type
12T70-865IIdler
12T70-865I-EZIdler w/E-Z Lube
12T70-865I-OILIdler w/Oil Bath
12T70-865EElectric
12T70-865E-EZElectric w/E-Z Lube
12T70-865E-NLElectric w/Nev-R Lube
12T70-865E-OILElectric w/Oil Bath
12T70-865HSingle Servo (SS) Hydraulic
12T70-865H-EZSS Hydraulic w/E-Z Lube
12T70-865H-NLSS Hydraulic w/Nev-R Lube
12T70-OILSS Hydraulic w/Oil Bath
12T70-865HFBSingle Servo Hydraulic (SSH) Freeback
12T70-865HFBEZSSH Freeback w/EZ lube
12T70-865HFBNLSSH Freeback w/Nev-R Lube
12T70-865HFBOILSSH Freeback w/Oil Bath
12T70-865HYDual Servo (DS) Hydraulic
12T70-865HY-EZDS Hydraulic w/E-Z Lube
12T70-865HY-NLDS Hydraulic w/Nev-R Lube
12T70-865HY-OILDS Hydraulic w/Oil Bath
#12 Torflex Axle Assemblies – 7,000lb ( UTG 5-Spoke )
PART# UTG 5-SpokeAxle Type
12F70-UTGIIdler
12T70-UTGI-EZIdler w/E-Z Lube
12T70-UTGI-OILIdler w/Oil Bath
12T70-UTGEElectric
12T70-UTGE-EZElectric w/E-Z Lube
N/AElectric w/Nev-R Lube
12T70-UTGE-OILElectric w/Oil Bath
12T70-UTGHSingle Servo (SS) Hydraulic
12T70-UTGH-EZSS Hydraulic w/E-Z Lube
N/ASS Hydraulic w/Nev-R Lube
12T70-UTGH-OILSS Hydraulic w/Oil Bath
12T70-UTGHFBSingle Servo Hydraulic (SSH) Freeback
12T70-UTGHFBEZSSH Freeback w/EZ lube
N/ASSH Freeback w/Nev-R Lube
12T70-UTGHFBOILSSH Freeback w/Oil Bath
12T70-UTGHYDual Servo (DS) Hydraulic
12T70-UTGHY-EZDS Hydraulic w/E-Z Lube
N/ADS Hydraulic w/Nev-R Lube
12T70-UTGHY-OILDS Hydraulic w/Oil Bath
#12V Torflex Axle Assemblies – 7,200lb ( 8 on 6 1/2″ )
PART# 8 on 6 1/2″Axle Type
12T72-865EElectric
12T72-865E-EZElectric w/E-Z Lube
12T72-865E-OILElectric w/Oil Bath
#12 & #12V Torflex Mounting Kit
Part No.Ref. No.Type
AP168063290Weld on Mounting Kit for #12 Torflex axles
Full Load Dimensions:
Dimensions are for low profile, top mount only. Side mount is .75″ higher. Side mount is .31″ higher. Allow 3″ bump clearance from full load.
#12 Torflex Start Angle
Tire
45 Down
22.5 Down
10 Down
0
10 up
22.5
H
B
C
H
B
C
H
B
C
H
B
C
H
B
C
H
B
C
D
E
LT235/85R164.318.611.12.016.313.4.715.014.7-.314.015.7-1.213.116.6-2.212.117.614.315.4
LT225/75R164.319.212.42.016.914.7.715.616.0-.314.617.0-1.213.717.9-2.212.718.914.916.7
8.75R16.5LT4.318.410.92.016.113.2.714.814.5-.313.815.5-1.212.916.4-2.211.917.414.115.2

#12 Torflex Start Angle
TireHBC
45 Down
LT235/85R164.318.611.1
LT225/75R164.319.212.4
8.75R16.5LT4.318.410.9
22.5 Down
LT235/85R162.016.313.4
LT225/75R162.016.914.7
8.75R16.5LT2.016.113.2
10 Down
LT235/85R16.715.014.7
LT225/75R16.715.616.0
8.75R16.5LT.714.814.5
0 Down
LT235/85R16-.314.015.7
LT225/75R16-.314.617.0
8.75R16.5LT-.313.815.5
10 Up
LT235/85R16-1.213.116.6
LT225/75R16-1.213.717.9
8.75R16.5LT-1.212.916.4
22.5
LT235/85R16-2.212.117.6
LT225/75R16-2.212.718.9
8.75R16.5LT-2.211.917.4
LT235/85R1614.315.4
LT225/75R1614.916.7
8.75R16.5LT14.115.2
#12 Torflex Articulation Dimensions:
Allow 3″ Bump Clearance from full load
Positive numbers indicate spindle is below the top of the bracket, negative numbers are above.
#12 Torflex Articulation Dimensions

10K 9,000-10,000lb General Duty and Heavy Duty Torflex Axles

For information on selecting torflex axles, click here. For specific ordering information, please contact us.

Suspension:

  • Features an independent suspension cushioned with rubber, providing a smooth, quiet ride with no transfer of road shock from one wheel to the other. (No springs required)

Bolt Pattern Options:

  • 10K GD & HD – 8 on 6 1/2″ Hub & Drum

Brake Options:

Forward Self-Adjusting

10K GD

  • 12 1/4″ x 3 3/8″ Electric
  • 12 1/4″ x 3 3/8″ – Hydraulic: Duo-Servo, Std; (Optional Uni-Servo) with or without parking feature
  • ABS Equipped Options for Hydraulic Brakes

10K HD

  • 12 1/4″ x4″ Electric
  • 12 1/4″ x 4″ – Hydraulic: Duo-Servo, Std; (Optional Uni-Servo) with or without parking feature
  • ABS Equipped Options for Hydraulic Brakes
Spindles:

  • 10K GD – 387A Inner, 25580 Outer Bearings
  • 10K HD – 395S Inner, 387A Outer Bearings

Lubrication:

  • 10K GD & HD – Oil Bath

Tires and Rims

Other Replacement Parts:

  • Axle Beams
10K General Duty Torflex Axle Assemblies ( 8 on 6 1/2″ )
PART# 8 on 6 1/2″Axle Type
10GDTF-865EElectric
10GDTF-865HYDual Servo Hydraulic
10K General Duty Torflex Axle Assemblies ( ABS Equipped 8 on 6 1/2″ )
PART# ABS Equipped 8 on 6 1/2″Axle Type
N/AElectric
10GDTF-865HABSDual Servo Hydraulic
10K Heavy Duty Torflex Axle Assemblies ( ABS Equipped 8 on 6 1/2″ )
Axle TypePART#ABS Equipped 8 on 6 1/2″
N/AElectric
10HDTF-865HABSDual Servo Hydraulic
10K Heavy Duty Torflex Axle Assemblies ( 8 on 6 1/2″ )
Axle TypePART# 8 on 6 1/2″
10HDTF-865EElectric
10HDTF-865HYDual Servo Hydraulic
10K Torflex Mounting Kit
Part No.Ref. No.Type
AP169064900Weld on Mounting Kit for 10K Torflex axles
Full Load Dimensions:
Dimensions are for low profile, top mount only. Side mount is .75″ higher. Side mount is .25″ higher. Allow 3″ bump clearance from full load.
10K Torflex Start Angle
Tire
45 Down
22.5 Down
10 Down
0
10 up
22.5
H
B
C
H
B
C
H
B
C
H
B
C
H
B
C
H
B
C
D
E
10R17.5HC5.220.213.42.917.915.71.616.617.0.615.618.0-.314.618.9-1.313.619.915.618.0
215/75R17.55.218.610.82.916.313.11.615.014.4.614.015.4-.313.016.3-1.312.017.314.015.3
12-16.5LT5.219.511.32.917.213.61.615.914.9.614.915.9-.313.916.8-1.312.917.814.915.8
9.50-16.56LT5.218.710.62.916.412.91.615.114.2.614.115.2-.313.116.1-1.312.117.114.115.2
9R17.5HC5.220.012.52.917.714.81.616.416.1.615.417.1-.314.418.0-1.313.419.015.417.1

10K Torflex Start Angle
TireHBC
45 Down
10R17.5HC5.220.213.4
215/75R17.55.218.610.8
12-16.5LT5.219.511.3
9.50-16.56LT5.218.710.6
9R17.5HC5.220.012.5
22.5 Down
10R17.5HC2.917.915.7
215/75R17.52.916.313.1
12-16.5LT2.917.213.6
9.50-16.56LT2.916.412.9
9R17.5HC2.917.714.8
10 Down
10R17.5HC1.616.617.0
215/75R17.51.615.014.4
12-16.5LT1.615.914.9
9.50-16.56LT1.615.114.2
9R17.5HC1.616.416.1
0 Down
10R17.5HC.615.618.0
215/75R17.5.614.015.4
12-16.5LT.614.915.9
9.50-16.56LT.614.115.2
9R17.5HC.615.417.1
10 Up
10R17.5HC-.314.618.9
215/75R17.5-.313.016.3
12-16.5LT-.313.916.8
9.50-16.56LT-.313.116.1
9R17.5HC-.314.418.0
22.5
10R17.5HC-1.313.619.9
215/75R17.5-1.312.017.3
12-16.5LT-1.312.917.8
9.50-16.56LT-1.312.117.1
9R17.5HC-1.313.419.0
10R17.5HC15.618.0
215/75R17.514.015.3
12-16.5LT14.915.8
9.50-16.56LT14.115.2
9R17.5HC15.417.1
10K Torflex Articulation Dimensions:
Allow 3″ Bump Clearance from full load
Positive numbers indicate spindle is below the top of the bracket, negative numbers are above.
10K Torflex Articulation Dimensions
Your Saved Parts
No Saved Parts yet...
QuantityPart #DescriptionRemove
Can't find the part you're looking for? Try searching:
