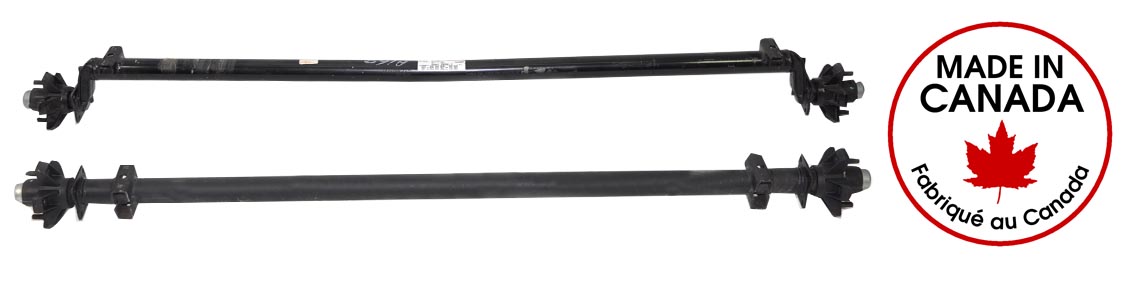

LEAF SPRING AXLES

HOME  >  TRAILER PARTS & ACCESSORIES  >  AXLE ASSEMBLIES  >  LEAF SPRING AXLES



All axles are special order and NON-REFUNDABLE.

RETURN POLICY

SHIPPING & DELIVERY

Options Available On Leaf Spring Axles:
  • Axle beam only (axle does not include hub; customer can reuse current hub)
  • Axle with idler hubs (includes hubs used on trailers without brakes)
  • Axle with brake drums & electric assemblies
  • Drop Axle Option (4″ drop is most common)
For Custom Built Axleswe only accept Interac e-Transfer, Direct Wire Transfer and Mail Bank Draft as payment methods.
To Request an Axle Quote Click Here
In Order For You To Obtain A Quote, We Need The Following Information:

Please Note That Axle Dimentsions Are Not NECESSARY To Obtain a Quote

  • If you are replacing axles on an existing trailer or building a trailer
  • The weight carrying capacity of the axle you are replacing
  • If building a trailer, the net weight of the cargo you want to haul

How to Determine Axle Weight Carrying Capacity:

Common Axles Ranging From 2,000lb to 7,000lb (Single Wheel)

  • The number of wheels studs on the hub (4, 5*, 6, or 8) and diameter of the wheel stud**

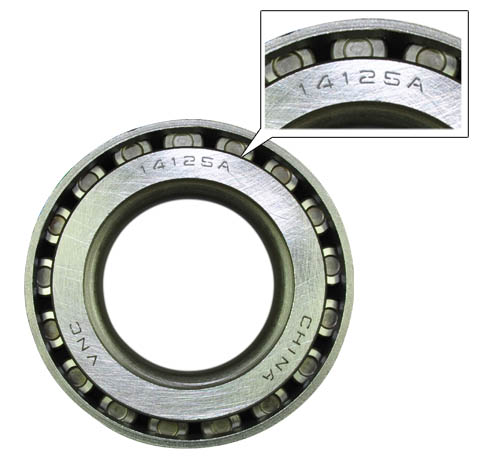

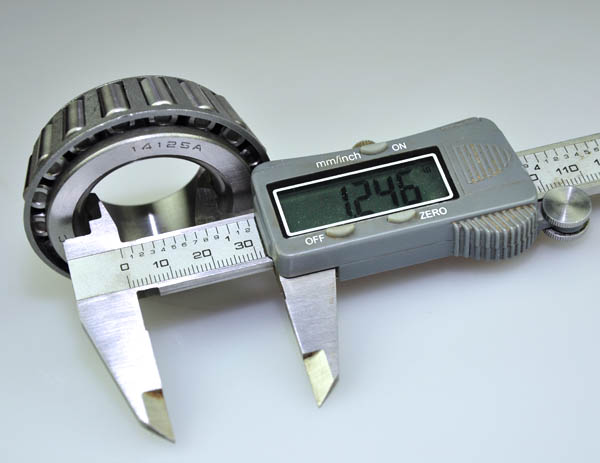

  • The inside & outside wheel bearing numbers (if unable to read the numbers, measure the inside diameter with a caliper)

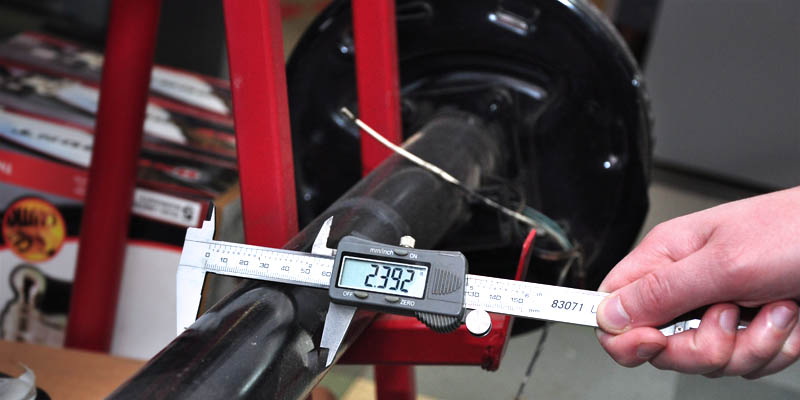

  • The diameter of the axle tube
  • The inside diameter of the axle brake drum***

*5 bolt wheel bolt pattern (Most common is 5 on 4 1/2″)
**Wheel studs on 7,000lb axles can be either 1/2″ or 9/16″ diameter
***In rare cases, a 6 bolt hub/drum the brake shoe may be 2 1/4″ x 10″ instead of 12″ x 2″

Determining the Dimensions of Spring Axle

Click the button above for instructional video

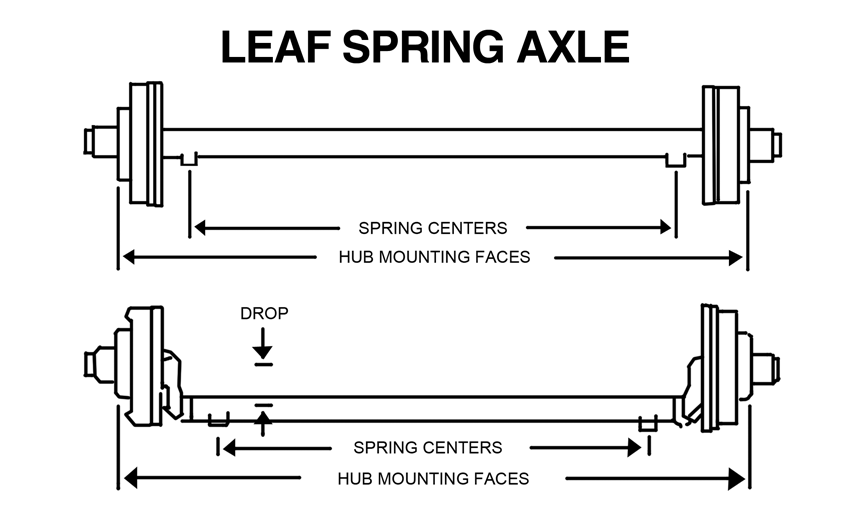

  • Hub face to hub face measurement
  • Spring center to spring center measurement
  • With 5-bolt hub, check bolt pattern (download template from our website* or consult a tire shop technician)
  • Whether springs are underslung (below the axle) or overslung (on top of the axle)
  • Whether the axle is straight or a drop axle (4″ Drop most common)

*Bolt pattern checker available for download from Resources

2,000lb

PART NUMBERDESCRIPTION
DX00203Straight Trailer Spring Axle, Beam Only
DX00204Straight Trailer Spring Axle, Includes 4 on 4″ Idler Hubs
DX00205Straight Trailer Spring Axle, Includes 5 on 4 1/2″ Idler Hubs

3,500lb

PART NUMBERDESCRIPTION
DX00353Straight Trailer Spring Axle, Beam Only
DX00354Straight Trailer Spring Axle, Includes 5 on 4 1/2″ Idler Hubs
DX00355GCStraight Trailer Spring Axle, Includes 5 on 4 1/2″ Brake Hubs & Electric Brake Assemblies
DX003574” Drop Trailer Spring Axle, Includes 5 On 4 ½” Idler Hubs
DX00358GCHD4” Drop Trailer Spring Axle, Includes 5 On 4 ½” Brake Hubs & Electric Brake Assemblies

5,200lb & 6,000lb

PART NUMBERDESCRIPTION
DX00523Straight Trailer Spring Axle, Beam Only
DX00524Straight Trailer Spring Axle, Includes 6 on 5 1/2″ Idler Hubs
DX00525GCStraight Trailer Spring Axle, Includes 6 on 5 1/2″ Brake Hubs & Electric Brake Assemblies*
DX005274” Drop Trailer Spring Axle, Includes 6 On 5 ½” Idler Hubs
DX00528GC4” Drop Trailer Spring Axle, Includes 6 On 5 ½” Brake Hubs & Electric Brake Assemblies*

*5.2k axles are typically paired with 6-bolt 15” wheels and tires; tire size is usually ST225/75R15.

7,000lb

PART NUMBERDESCRIPTION
DX00703Straight Trailer Spring Axle, Beam Only
DX00704Straight Trailer Spring Axle, Includes 6 on 5 1/2″ Brake Hubs & Electric Brake Assemblies
DX00705GCStraight Trailer Spring Axle, Includes 8 On 6 ½” Brake Hubs & Electric Brake Assemblies
DX007074” Drop Trailer Spring Axle, Includes 8 On 6 ½” Idler Hubs
DX00708GC4” Drop Trailer Spring Axle, Includes 8 On 6 ½” Brake Hubs & Electric Brake Assemblies

8,000lb

PART NUMBERDESCRIPTION
DX00805GCStraight Trailer Spring Axle, Includes 8 on 6 1/2″ Brake Hubs & Electric Brake Assemblies

10,000lb – 16,000lbs

Although DexKo Global (Dexter) has bought out most of the larger axle manufacturers, such as AL-KO and Quality, there are still many of these axles out in the field. The parts for these axles have not been standardized, so there is no interchangability of components between these brands. There are some off-shore replacement components for some of these brands that reduce the cost when purchasing replacement parts.

How to Identify Axles with Dual Wheels

(10,000lbs – 16,000lb Capacity)

  • The name of the axle manufacturer; the easiest way is to read the axle’s oil cap
  • The inside and outisde wheel bearing numbers
  • The number of wheel studs, along with the diameter of said wheel studs
  • Whether it is a one-piece or two-piece hub & drum
  • If the drum has an armature plate
  • The pilot diameter of the wheel
PART NUMBER
10GD865E-NOSPRDexter 10K General Duty Trailer Spring Axle, 8 on 6 1/2″ Bolt Pattern, 4.75″ Pilot Diameter

Suspension Kits for Common Axle Configurations

All suspension kits include the necessary springs, hangers, equalizers, suspension bolts, and u-bolts to attach one or more spring axles to a trailer frame. Note that 5,200lb axles use either double-eye or slipper springs, so be sure to find out which one your trailer has and select the corresponding part number.
PART NUMBER
DX00201Single Suspension Kit for 2,000lb Spring Axles
DX00351Single Suspension Kit for 3,500lb Spring Axles
DX00352Tandem Suspension Kit for 3,500lb Spring Axles
DX00522-DETandem Suspension Kit for 5,200lb/6,000lb Spring Axles Using Double-Eye Springs
DX00522Tandem Suspension Kit for 5,200lb/6,000lb Spring Axles Using Slipper Springs
DX00702Tandem Suspension Kit for 7,000lb Spring Axles
DX00702-TRITriple Suspension Kit for 7,000lb Spring Axles
To Request an Axle Quote Click Here

SHIPPING DISCLAIMER

Once an item has been shipped, Trailer Canada is not responsible for any damage, delays, or losses incurred during the shipping process.

The customer is responsible for pursuing any issues incured during the shipping process such as damage, delays or losses. The customer is also responsible for ensuring that the shipping information they provided, such as a delivery address, is accurate and will result in a successful delivery.

TRANSPORTATION AND DELIVERY OF AXLES

All Axles must be delivered by common carrier if delivery is requested.

For axle delivery across Canada we can reduce the cost of transportation by shipping the axle(s) to the nearest Carrier Depot or Truck Terminal where possible. Customer then drives to the Terminal to pick up the axles.

Customers may pickup at St. Paul, AB (Main Store) location if they wish.  An estimate of time needed for manufacture and delivery of axles and components will be given to the Customer at time of order.  We can estimate when the axles will be ready for pickup upon ordering the axles.  We will call you when your axles are being delivered or ready for pickup.
